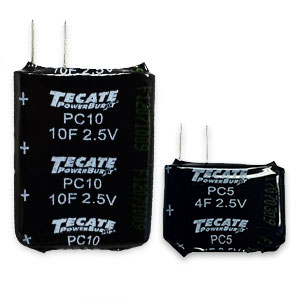

Type PC
Prismatic-package, low-profile, hermetically sealed ultracapacitor cells,
High reliability / Military

Features

  • Replaces the Maxwell PC5 & PC10 and suitable for new designs
  • 10-year life capability
  • Enhanced seal, stainless steel construction
  • Low-profile prismatic design
  • Higher energy vs. electrolytic
  • Higher power vs. batteries
  • RoHS compliant

Applications

  • Automatic meter readers (AMR)
  • Backup power for last gasp and soft shutdown
  • Wireless transmissions
  • Handheld devices: commercial and military
Need a custom fit for your design? Click here to get started.

General Specifications

ItemPerformance
Operating temperature-40°C to +70°C
Storage temperature-40°C to +85°C
Capacitance range4F to 10F
Rated voltage2.5 VDC
Endurance
(At rated voltage & max. operating temp)		After 1000 hours:
Capacitance change: Within ±20% of initial specified value
ESR: Within 2 times of initial specified value
Projected Load life
(At rated voltage & 25°C)		After 10 years:
Capacitance change: Within ±20% of initial specified value
ESR: Within 2 times of initial specified value
Projected cycle life
(From rated voltage to 1/2 rated voltage at 25°C)		After 500,000 cycles:
Capacitance change: Within ±20% of initial specified value
ESR: Within 2 times of initial specified value
Shelf lifeAfter 3 years uncharged at 25C:
Capacitance change: ≤10% decrease from initial specified value
ESR change: ≤50% increase from initial specified value

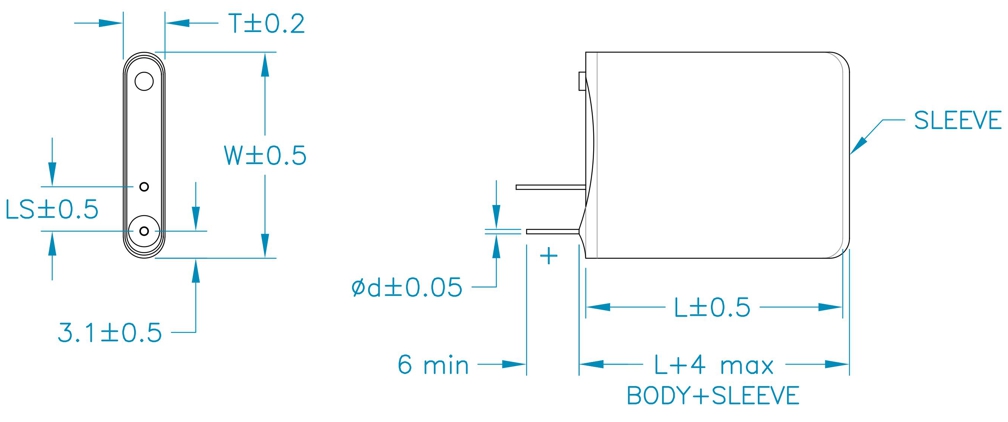

Dimensions


Standard Products

Part Number Nom. Cap. (F)GMV (F)*ESR DC (mΩ)ESR AC (mΩ)
(1 KHz)		Leakage Current (µA)
(72 hrs @ 25C)		Dimensions (mm)Rated
Current (A)		Weight/Unit (grams)
LWTdLS
PC543.6500362201423.64.80.55.12.54
PC101091801304029.623.64.80.55.16.26.3
*NOTE: GMV = Guaranteed Minimum Value.
7520 Mission Valley Road • San Diego, CA 92108-4400 USA • Tel: 619.398.9700 • www.tecategroup.com
Tecate reserves the right, without notice, to change design or construction of any products and to discontinue or limit distribution of any products. Tecate also reserves the right to change or update, without notice, any technical information contained in this bulletin.
 Spec. Date: 2024-06-06 16:29:29
