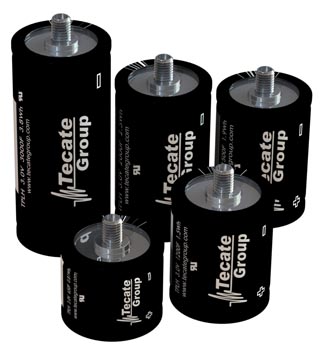

Type TPLH 3.0V Threaded
Electric double layer ultracapacitor

Features

  • Extremely low ESR
  • 10 year service life
  • RoHS/REACH compliant
  • Halogen Free
  • UL recognized

Applications

  • Peak power handling
  • Industrial automation
  • UPS/voltage hold up

General Specifications

ItemPerformance
Operating temperature-40°C to +65°C
Storage temperature-40°C to +70°C
Capacitance range650F to 3,000F
Rated voltage3 VDC
Surge voltage3.2 VDC
Temperature characteristicsCapacitance change: Within ±5% of initial measured value at +25°C (-40°C to +65°C)
Internal resistance: Within ±50% of initial measured value at +25°C (at -40°C)
Endurance
(At rated voltage & max. operating temp)
After 1500 hours:
Capacitance change: Within ±20% of initial rated value
Internal resistance: Within 2 times of initial specified value
Projected Load life
(At rated voltage & 25°C)
10 years:
Capacitance change: Within ±20% of initial rated value
Internal resistance: Within 2 times of initial specified value
Projected cycle life
(From rated voltage to 1/2 rated voltage at 25°C)
1,000,000 cycles between Vr and ½ Vr:
Capacitance change: Within ±20% of initial rated value
Internal resistance: Within 2 times of initial specified value
Shelf lifeAfter 4 years at 25°C without load, the capacitor shall meet the specified endurance limits.

Dimensions



Standard Products

Part Number Nom. Cap. (F) GMV (F)*ESR DC (mΩ)ESR AC (mΩ)Leakage Current (mA)
(72 hrs @ 25C)
Dimensions (mm)Rated
Current (A)
Weight/Unit (grams)
D1D2L
TPLH-3R0/650SL60X516506500.60.351.56060.751.5590210
TPLH-3R0/1200SL60X74120012000.360.252.76060.7741060295
TPLH-3R0/1500SL60X85150015000.310.2736060.7851300330
TPLH-3R0/2000SL60X102200020000.30.2146060.71021500390
TPLH-3R0/3000SL60X138300030000.260.1756060.71382200525
*NOTE: GMV = Guaranteed Minimum Value.
