Type TPLS

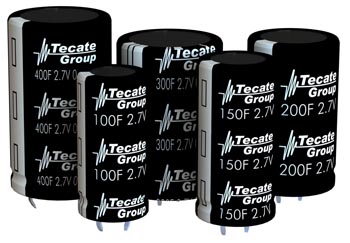

Snap-in ultracapacitor cells

Features

  • Small size and low resistance
  • Quick charge and discharge
  • RoHS compliant
  • UL recognized

Applications

  • Pulse power demand
  • Hybrid battery packs
  • Portable electronic devices
Need a custom fit for your design? Click here to get started.

General Specifications

ItemPerformance
Operating temperature-40°C to +65°C @ 2.7V
-40°C to +85°C @ 2.3V
Storage temperature-40°C to +70°C
Capacitance range100F to 400F
Rated voltage2.7 VDC / 2.3 VDC
Surge voltage2.85 VDC
Temperature characteristicsCapacitance Change Within ±5% of initial measured value at +25°C(-40°C to +65°C)
Internal resistance Within ±50% of initial measured value at +25°C(at -40°C)
Endurance
(At rated voltage & max. operating temp)		After 1000 hours:
Capacitance change: Within ±30% of initial rated value
Internal resistance: Within 2 times of initial specified value
Projected Load life
(At rated voltage & 25°C)		After 10 years:
Capacitance change: Within ±30 % of initial rated value
Internal resistance: Within 2 times of initial specified value
Projected cycle life
(From rated voltage to 1/2 rated voltage at 25°C)		After 500,000 cycles:
Capacitance change: Within ±30 % of initial rated value
Internal resistance: Within 2 times of initial specified value
Shelf lifeAfter 2 years at 25°C without load, the capacitor shall meet the specified endurance limits.

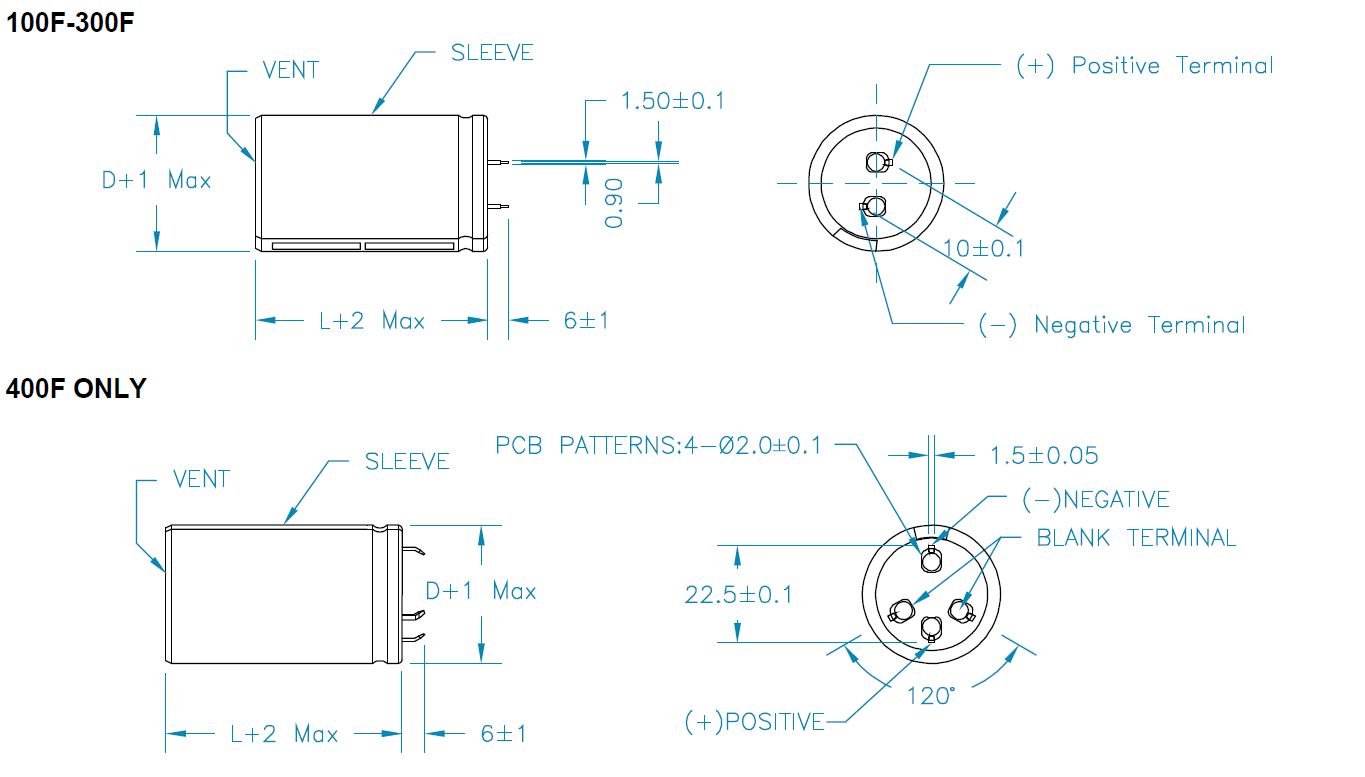

Dimensions


Standard Products

Part Number Nom. Cap. (F)GMV (F)*ESR DC (mΩ)ESR AC (mΩ)
(1 KHz)		Leakage Current (mA)
(72 hrs @ 25C)		Dimensions (mm)Rated
Current (A)		Weight/Unit (grams)
DL
TPLS-100/22X45F100901590.2622455425
TPLS-150/25X50F1501351480.5255065.3235
TPLS-200/30X50F2001801480.6305071.0542
TPLS-300/35X50F3002701480.8355077.8860
TPLS-400/35X60F4003601251.2356093.172
*NOTE: GMV = Guaranteed Minimum Value.
