Item | Performance |
---|---|
Operating temperature | -40°C to +65°C @ 3V -40°C to +85°C @ 2.5V |
Storage temperature | -40°C to +70°C |
Capacitance range | 100F to 450F |
Rated voltage | 3 VDC / 2.5 VDC |
Surge voltage | 3.2 VDC |
Temperature characteristics | Capacitance change: Within ±5% of initial measured value at +25°C (-40°C to +65°C) Internal resistance: Within ±50% of initial measured value at +25°C (at -40°C) |
Endurance (At rated voltage & max. operating temp) | After 1500 hours: Capacitance change: Within 20% of initial rated value Internal resistance: Within 2 times of initial specified value |
Projected Load life (At rated voltage & 25°C) | 10 years: Capacitance change: Within 20% of initial rated value Internal resistance: Within 2 times of initial specified value |
Projected cycle life (From rated voltage to 1/2 rated voltage at 25°C) | 500,000 cycles: Capacitance change: Within 20% of initial rated value Internal resistance: Within 2 times of initial specified value |
Shelf life | After 4 years at 25°C without load, the capacitor shall meet the specified endurance limits. |
Part Number | Nom. Cap. (F) | GMV (F)* | ESR DC (mΩ) | ESR AC (mΩ) | Leakage Current (mA) (72 hrs @ 25C) | Dimensions (mm) | Rated Current (A) | Weight/Unit (grams) | |
---|---|---|---|---|---|---|---|---|---|
D | L | ||||||||

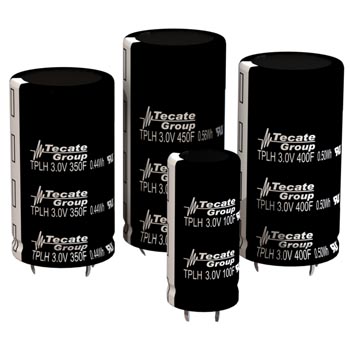

TPLH-3R0/100SS22X46 | 100 | 100 | 12 | 7 | 0.3 | 22 | 46 | 79 | 23 |
TPLH-3R0/350SS35X61 | 350 | 350 | 4 | 3 | 0.8 | 35 | 61 | 247 | 72 |
TPLH-3R0/400SS35X66 | 400 | 400 | 3.6 | 2.9 | 0.9 | 35 | 66 | 267 | 80 |
TPLH-3R0/450SS35X71 | 450 | 450 | 3.6 | 2.8 | 1 | 35 | 71 | 287 | 88 |
