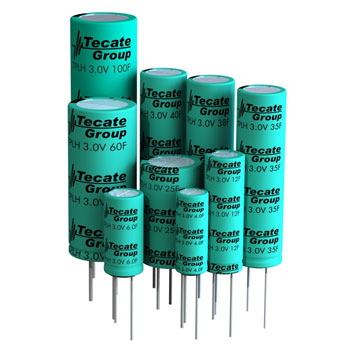

Item | Performance |
---|---|
Operating temperature | -40°C to +65°C @ 3V -40°C to +85°C @ 2.7V |
Storage temperature | -40°C to +70°C |
Capacitance range | 4F to 100F |
Rated voltage | 3 VDC / 2.7 VDC |
Surge voltage | 3.15 VDC |
Temperature characteristics | Capacitance change: Within ±5% of initial measured value at +25°C (-40°C to +65°C) Internal resistance: Within ±50% of initial measured value at +25°C (at -40°C) |
Endurance (At rated voltage & max. operating temp) | After 1000 hours: Capacitance change: ±30% of initial rated value Internal resistance: Within 2 times of initial specified value |
Projected Load life (At rated voltage & 25°C) | After 10 years: Capacitance change: Within ±30 % of initial rated value Internal resistance: Within 2 times of initial specified value |
Projected cycle life (From rated voltage to 1/2 rated voltage at 25°C) | After 500,000 cycles: Capacitance change: Within ±30 % of initial rated value Internal resistance: Within 2 times of initial specified value |
Shelf life | After 2 years at 25°C without load, the capacitor shall meet the specified endurance limits. |
Biased humidity life | 3000 hours of continuous charging at VR, 60°C and 90%RH for mechanical integrity |
Part Number | Nom. Cap. (F) | GMV (F)* | ESR DC Typical (mΩ) | ESR AC Max. (mΩ) (1 KHz) | Leakage Current (µA) (72 hrs @ 25C) | Dimensions (mm) | Rated Current (A) | Weight/Unit (grams) | |||
---|---|---|---|---|---|---|---|---|---|---|---|
D | L | d | LS | ||||||||
TPLH-3R0/4.0WR8X20 | 4 | 3.6 | 220 | 140 | 15 | 8 | 19 | 0.6 | 3.5 | 3.19 | 2.4 |
TPLH-3R0/6.0WR10X20 | 6 | 5.4 | 70 | 60 | 15 | 10 | 20 | 0.6 | 5 | 5.4 | 2.4 |
TPLH-3R0/10WR10X30 | 10 | 9 | 55 | 40 | 30 | 10 | 30 | 0.6 | 5 | 9 | 3.4 |
TPLH-3R0/12WR10X30 | 12 | 10.8 | 55 | 40 | 30 | 10 | 30 | 0.6 | 5 | 10.7 | 3.4 |
TPLH-3R0/25WR16X26 | 25 | 22.5 | 30 | 25 | 75 | 16 | 26 | 0.8 | 7.5 | 21.43 | 7.5 |
TPLH-3R0/35WR12X46 | 35 | 31.5 | 22 | 16 | 80 | 12.5 | 46.5 | 0.8 | 5.3 | 29.66 | 8.5 |
TPLH-3R0/38WR12X46 | 38 | 34.2 | 22 | 16 | 80 | 12.5 | 46.5 | 0.8 | 5.3 | 31.05 | 8.5 |
TPLH-3R0/40WR12X46 | 40 | 36 | 22 | 16 | 80 | 12.5 | 46.5 | 0.8 | 5.3 | 31.91 | 8.5 |
TPLH-3R0/60WR18X40 | 60 | 54 | 14 | 12 | 180 | 18 | 40 | 0.8 | 7.5 | 43.27 | 16 |
TPLH-3R0/100WR18X60 | 100 | 90 | 12 | 10 | 225 | 18 | 60 | 1 | 7.5 | 57.69 | 22 |
