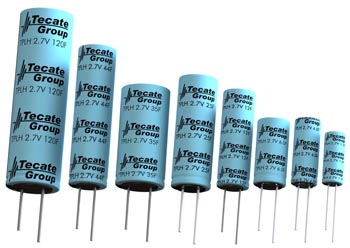

Type TPLH Radial
General purpose radial lead Ultracapacitor cells

Features

  • Small size and low resistance
  • Quick charge and discharge
  • RoHS compliant
  • Sealed for improved performance in elevated humidity environments
  • UL Recognized

Applications

  • Pulse power demand
  • Hybrid battery packs
  • Portable electronic devices
Need a custom fit for your design? Click here to get started.

General Specifications

ItemPerformance
Operating temperature-40°C to +65°C @ 2.7V
-40°C to +85°C @ 2.3V
Storage temperature-40°C to +70°C
Capacitance range1.5F to 120F
Rated voltage2.7 VDC / 2.3 VDC
Surge voltage2.85 VDC
Temperature characteristicsCapacitance change: Within ±5% of initial measured value at +25°C (-40°C to +65°C)
Internal resistance: Within ±50% of initial measured value at +25°C (at -40°C)
Endurance
(At rated voltage & max. operating temp)		After 1000 hours:
Capacitance change: ±30% of initial rated value
Internal resistance: Within 2 times of initial specified value
Projected Load life
(At rated voltage & 25°C)		After 10 years:
Capacitance change: Within ±30 % of initial rated value
Internal resistance: Within 2 times of initial specified value
Projected cycle life
(From rated voltage to 1/2 rated voltage at 25°C)		After 500,000 cycles:
Capacitance change: Within ±30 % of initial rated value
Internal resistance: Within 2 times of initial specified value
Shelf lifeAfter 4 years at 25°C without load, the capacitor shall meet the specified endurance limits.
Biased humidity life3000 hours of continuous charging at VR, 60°C and 90%RH for mechanical integrity

Dimensions


Standard Products

Part Number Nom. Cap. (F)GMV (F)*ESR DC Typical (mΩ)ESR AC Max. (mΩ)
(1 KHz)		Leakage Current (µA)
(72 hrs @ 25C)		Dimensions (mm)Rated
Current (A)		Weight/Unit (grams)
DLdLS
TPLH-2R7/1.5WR6X151.51.35253231106.3150.52.51.031
TPLH-2R7/2.8WR8X162.82.52148129168160.63.521.5
TPLH-2R7/4.0WR8X2043.611088228190.63.52.91.6
TPLH-2R7/6.0WR10X2065.475522410200.654.32.5
TPLH-2R7/12WR10X301210.866364810300.658.023.5
TPLH-2R7/22WR12X312219.838328812.531.50.85.314.926.5
TPLH-2R7/25WR12X352522.533279612.535.50.85.316.467
TPLH-2R7/28WR12X352825.2272512212.535.50.85.318.317.3
TPLH-2R7/30WR12X353027272512212.535.50.85.319.768.5
TPLH-2R7/30WR16X263027262313016260.87.519.768.5
TPLH-2R7/34WR12X403430.6252216212.5400.85.322.728.5
TPLH-2R7/35WR16X313531.525221621631.50.87.523.058.5
TPLH-2R7/40WR12X464036242117012.546.50.85.3278.6
TPLH-2R7/44WR12X464439.6242117012.546.50.85.328.298.6
TPLH-2R7/75WR18X407567.51614240184017.540.517
TPLH-2R7/120WR18X601201081210415186017.555.4823
*NOTE: GMV = Guaranteed Minimum Value.
