Type TPLCE
Hybrid Capacitor (LIC)

Features

  • Compact size and higher energy density
  • Higher voltage
  • Quick charge and discharge
  • RoHS & REACH compliant

Applications

  • Pulse power demand
  • Ride thru power support
  • Back up power
  • Stand alone or augment existing energy/power source
Need a custom fit for your design? Click here to get started.

General Specifications

ItemPerformance
Operating temperature-25°C to +70°C @ 3.8V
-25°C to +85°C @ 3.5V
Storage temperature-25°C to +70°C
Capacitance200F
Capacitance tolerance+/-20%
Rated voltage3.8 VDC / 3.5 VDC
Minimum rated voltage2.2 VDC
Surge voltage4.35 VDC
Temperature characteristicsCapacitance change: Within ±50% of initial measured value at +25°C (-25°C to 70°C)
Internal resistance: Within ±800% of initial measured value at +25°C (at -25°C)
Endurance
(At rated voltage & max. operating temp)		After 1000 hours:
Capacitance change: ±30% of minimum rated value
Internal resistance: Within 2 times of maximum rated value
Projected cycle lifeAfter 250,000 cycles: From 3.8V to 2.5V at 25°C
Capacitance change: Within ±30 % of minimum value
Internal resistance: Within 2 times of maximum rated value
Shelf lifeAfter 1000 hours storage, at 70°C without load, the capacitor shall meet the specified endurance limits.

Individual cells also available with cable and Molex connector 87439-0200. Please contact Tecate Group for a quotation.

Dimensions


Standard Products

Part Number ULNom. Cap. (F)ESR AC (mΩ)
(1 KHz)		ESR DC Typical (mΩ)Leakage Current (µA)Dimensions (mm)Rated
Current (A)		Max
Current* (A)		Weight/Unit (grams)
DLdLS

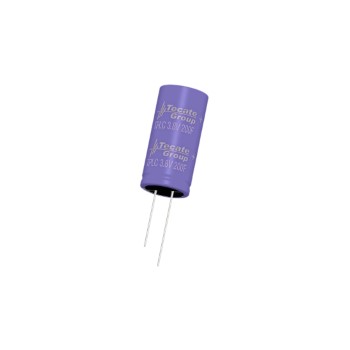

TPLCE-3R8/200MR12X25200651351812.5 25 0.65166.6
* Maximum allowable current for 3 seconds or less.
