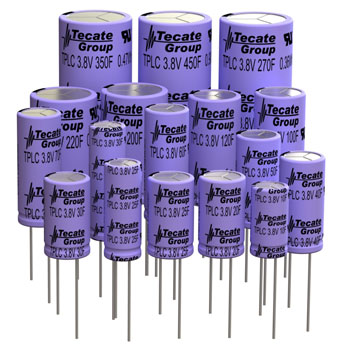

Type TPLC
Hybrid Capacitor (LIC)

Features

  • Compact size and energy dense
  • Higher voltage
  • Quick charge and discharge
  • RoHS & Reach compliant

Applications

  • Pulse power demand
  • Ride thru power support
  • Back up power
  • Stand alone or augment existing energy/power source
Need a custom fit for your design? Click here to get started.

General Specifications

ItemPerformance
Operating temperature-15°C to +70°C @ 3.8V
-15°C to +85°C @ 3.5V
Storage temperature-25°C to +70°C
Capacitance range10F to 450F
Capacitance tolerance+/-20%
Rated voltage3.8 VDC / 3.5 VDC
Minimum rated voltage2.2 VDC
Surge voltage4.2 VDC
Temperature characteristicsCapacitance change: Within ±50% of initial measured value at +25°C (-15°C to +70°C)
Internal resistance: Within ±800% of initial measured value at +25°C (at -15°C)
Endurance
(At rated voltage & max. operating temp)		After 1000 hours:
Capacitance change: ±30% of minimum rated value
Internal resistance: Within 2 times of maximum rated value
Projected cycle lifeAfter 500,000 cycles: From 3.8V to 2.5V at 25°C
Capacitance change: Within ±30 % of minimum value
Internal resistance: Within 2 times of maximum rated value
Shelf lifeAfter 1000 hours storage, at 70°C without load, the capacitor shall meet the specified endurance limits.

Dimensions


Standard Products

Part Number ULNom. Cap. (F)ESR AC (mΩ)
(1 KHz)		ESR DC Typical (mΩ)Leakage Current (µA)Dimensions (mm)Rated
Current (A)		Max
Current* (A)		Weight/Unit (grams)
DLdLS
TPLC-3R8/10MR8X1410500180028140.63.50.050.51.9
TPLC-3R8/20MR10X16203001000310160.650.1512.1
TPLC-3R8/25MR10X16 252701000310160.650.1512.2
TPLC-3R8/25MR8X20253009002.58200.63.50.130.82.2
TPLC-3R8/30MR10X1630250900310160.650.1512.5
TPLC-3R8/30MR8X253025080038250.63.50.150.92.3
TPLC-3R8/40MR10X20402207004.510200.650.251.82.8
TPLC-3R8/50MR10X20502007004.510200.650.251.83
TPLC-3R8/60MR10X2560130480510250.650.3533.6
TPLC-3R8/70MR10X2570105480510250.650.3533.8
TPLC-3R8/100MR12X2510090420712.5250.650.5545.4
TPLC-3R8/120MR12X2512090400712.5250.650.655.6
TPLC-3R8/150MR12X2515070400712.5250.650.656.2
TPLC-3R8/200MR16X25200704001216250.87.51.189.6
TPLC-3R8/220MR16X25220604001216250.87.51.1810
TPLC-3R8/270MR18X40270701203518400.87.52.251513.8
TPLC-3R8/350MR18X40350651203518400.87.52.51716
TPLC-3R8/450MR18X40450601203518400.87.52.752018
* Maximum allowable current for 3 seconds or less.
7520 Mission Valley Road • San Diego, CA 92108-4400 USA • Tel: 619.398.9700 • www.tecategroup.com
Tecate reserves the right, without notice, to change design or construction of any products and to discontinue or limit distribution of any products. Tecate also reserves the right to change or update, without notice, any technical information contained in this bulletin.
 Spec. Date: 2024-09-17 16:42:12
