Type TPL

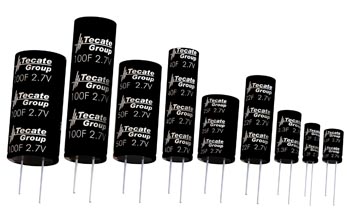

General purpose radial lead Ultracapacitor cells

Features

  • Small size and low resistance
  • Quick charge and discharge
  • RoHS compliant
  • UL recognized
  • Sealed for improved performance in elevated humidity environments

Applications

  • Pulse power demand
  • Hybrid battery packs
  • Portable electronic devices
Need a custom fit for your design? Click here to get started.

General Specifications

ItemPerformance
Operating temperature-40°C to +65°C @ 2.7V
-40°C to +85°C @ 2.3V
Storage temperature-40°C to +70°C
Capacitance range0.5F to 100F
Rated voltage2.7 VDC / 2.3 VDC
Surge voltage2.85 VDC
Temperature characteristicsCapacitance change: Within ±5% of initial measured value at +25°C (-40°C to +65°C)
Internal resistance: Within ±50% of initial measured value at +25°C (at -40°C)
Endurance
(At rated voltage & max. operating temp)		After 1000 hours:
Capacitance change: ±30% of initial rated value
Internal resistance: Within 2 times of initial specified value
Projected Load life
(At rated voltage & 25°C)		After 10 years:
Capacitance change: Within ±30 % of initial rated value
Internal resistance: Within 2 times of initial specified value
Projected cycle life
(From rated voltage to 1/2 rated voltage at 25°C)		After 500,000 cycles:
Capacitance change: Within ±30 % of initial rated value
Internal resistance: Within 2 times of initial specified value
Shelf lifeAfter 4 years at 25°C without load, the capacitor shall meet the specified endurance limits.
Biased humidity life3000 hours of continuous charging at VR, 60°C and 90%RH for mechanical integrity

Dimensions


Standard Products

Part Number Nom. Cap. (F)GMV (F)*ESR DC (mΩ)ESR AC (mΩ)
(1 KHz)		Leakage Current (µA)
(72 hrs @ 25C)		Dimensions (mm)Rated
Current (A)		Weight/Unit (grams)
DLdLS
TPL-0.5/8X12F0.50.45180070028120.63.50.361
TPL-1.0/6X15F10.975038066.3150.52.50.721
TPL-1.0/8X12F10.970031568120.63.50.721.1
TPL-1.2/6X15F1.21.0865033066.3150.52.50.851
TPL-1.5/8X14F1.51.3541019088140.63.51.051.2
TPL-2.0/8X16F21.8350180108160.63.51.441.3
TPL-3.3/10X20F3.32.972901501210200.652.282
TPL-3.3/8X20F3.32.97300120128200.63.52.241.5
TPL-4.0/10X20F43.62501501410200.652.72.2
TPL-5.0/10X20F54.5160901510200.653.62.3
TPL-6.0/10X20F65.4130701510200.654.32.5
TPL-6.0/8X28F65.414080158280.63.54.32.3
TPL-8.0/10X25F87.2100602010250.655.73
TPL-10/10X30F10985603010300.657.23.5
TPL-11/10X30F119.985603010300.657.673.5
TPL-15/12X31F1513.560353512.531.50.85.310.665.3
TPL-22/12X35F2219.845305512.535.50.85.314.926.5
TPL-25/16X26F2522.542286016260.87.516.467.5
TPL-28/12X40F2825.238256012.5400.85.318.317.3
TPL-30/16X31F30273525801631.50.87.519.768.8
TPL-40/12X46F403629197012.546.50.85.324.419.5
TPL-50/18X40F5045201513018400.87.533.7513
TPL-60/18X40F6054201413018400.87.536.8215
TPL-100/18X60F100901610260186017.551.9222
TPL-100/22X45F100901510260224519.55423
*NOTE: GMV = Guaranteed Minimum Value.
