Type PC5-5

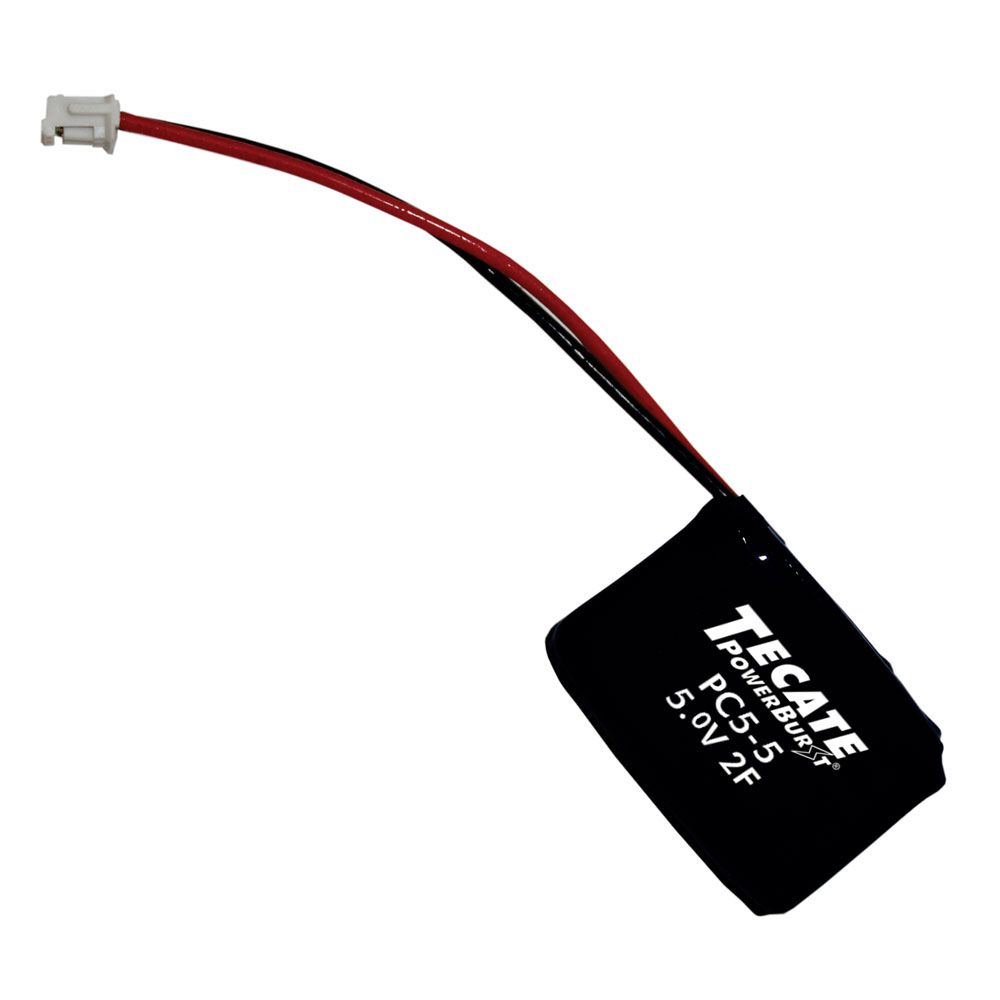

Actively balanced module with prismatic/hermetic ultracapacitor cells
Features
- Replaces Maxwell PC5-5
- Over 500,000 duty cycles
- 10-year life capability
- Hermetically sealed, stainless steel construction
- Linear voltage balanced cells
- Higher energy vs. electrolytic
- Higher power vs. batteries
Applications
- Automatic meter readers
- Automotive subsystems
- Backup power for soft shutdown requirements
- Digital cameras and other consumer electronics
- Wireless transmissions
Need a custom fit for your design? Click here to get started.
General Specifications
| Item | Performance |
|---|---|
| Operating temperature | -40°C to +65°C |
| Storage temperature | -40°C to +85°C |
| Capacitance | 2F |
| Capacitance tolerance | ±20% |
| Rated voltage | 5 VDC |
| Endurance (At rated voltage & max. operating temp) | After 1000 hours: Capacitance change: Within ±20% of initial measured value Internal resistance: Within ±40% of initial specified value |
| Projected Load life (At rated voltage & 25°C) | After 10 years: Capacitance change: Within ±20% of initial measured value Internal resistance: Within 2 times of initial specified value |
| Projected cycle life (From rated voltage to 1/2 rated voltage at 25°C) | After 500,000 cycles: Capacitance change: Within ±20% of initial measured value Internal resistance: Within 2 times of initial specified value |

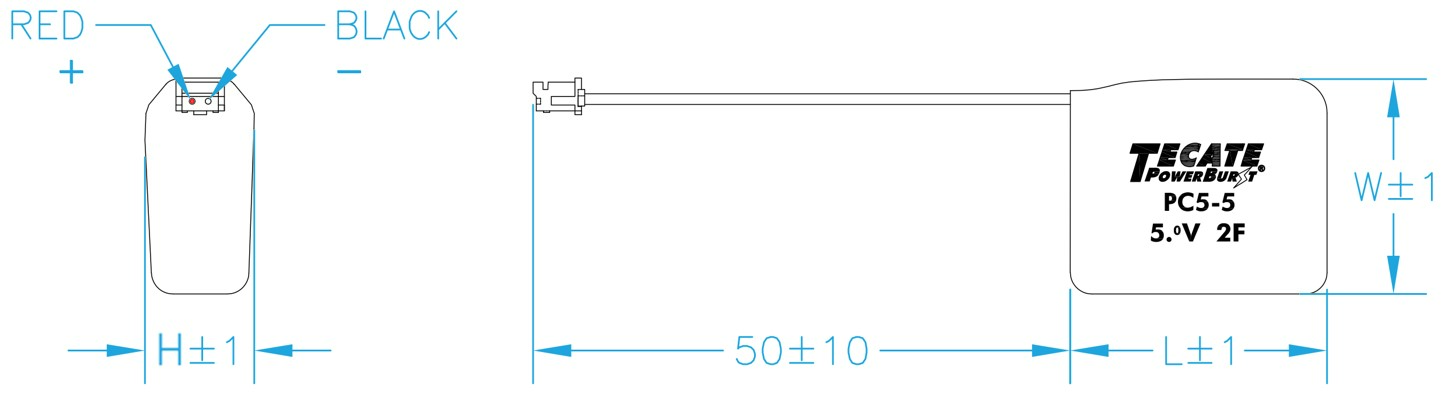

Dimensions
Standard Products
| Part Number | Nom. Cap. (F) | ESR DC (mΩ) | ESR AC (mΩ) (1 KHz) | Leakage Current (µA) (72 hrs @ 25C) | Dimensions (mm) | Weight/Unit (grams) | ||
|---|---|---|---|---|---|---|---|---|
| L | W | H | ||||||
| PC5-5 | 2 | 1000 | 725 | 20 | 24 | 18 | 11 | 8 |
