Type PBLL

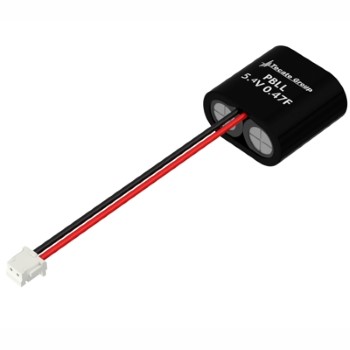

Passively balanced ultracapacitor modules with leads and connector

Features

  • Small size and low resistance
  • Passive linear voltage balanced cells
  • Quick charge and discharge
  • JST ZHR-2 quick connect
  • RoHS compliant
  • UL recognized

Applications

  • Pulse power demand
  • Hybrid battery packs
  • Portable electronic devices
Need a custom fit for your design? Click here to get started.

General Specifications

ItemPerformance
Operating temperature-40°C to +65°C @ 5.4V
-40°C to +85°C @ 4.6V
Storage temperature-40°C to +70°C
Capacitance0.47F
Rated voltage5.4 VDC / 4.6 VDC
Surge voltage5.7 VDC
Temperature characteristicsCapacitance change: Within ±5% of initial measured value at +25°C (-40°C to +65°C)
Internal resistance: Within ±50% of initial measured value at +25°C (at -40°C)
Endurance
(At rated voltage & max. operating temp)		After 1000 hours:
Capacitance change: within ±30% of initial rated value
Internal resistance: Within 2 times of initial specified value
Projected Load life
(At rated voltage & 25°C)		After 10 years:
Capacitance change: Within ±30 % of initial rated value
Internal resistance: Within 2 times of initial specified value
Projected cycle life
(From rated voltage to 1/2 rated voltage at 25°C)		After 500,000 cycles:
Capacitance change: Within ±30 % of initial rated value
Internal resistance: Within 2 times of initial specified value
Shelf lifeAfter 4 years at 25°C without load, the capacitor shall meet the specified endurance limits.

Dimensions


Standard Products

Part Number Nom. Cap. (F)GMV (F)*ESR DC (mΩ)ESR AC (mΩ)
(1 KHz)		Leakage Current (µA)
(72 hrs @ 25C)		Dimensions (mm)Rated
Current (A)
LWH
PBLL-0.47/5.40.470.421460690801718100.78
*NOTE: GMV = Guaranteed Minimum Value.
