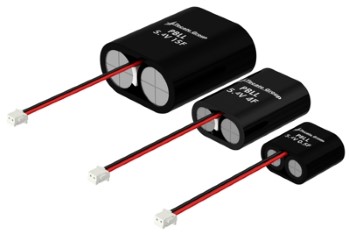

Type PBLL
Passively balanced ultracapacitor modules with leads and connector
Features
- Small size and low resistance
- Passive linear voltage balanced cells
- Quick charge and discharge
- JST ZHR-2 quick connect
- RoHS compliant
- UL recognized
Applications
- Pulse power demand
- Hybrid battery packs
- Portable electronic devices
Need a custom fit for your design? Click here to get started.
General Specifications
| Item | Performance |
|---|---|
| Operating temperature | -40°C to +65°C @ 5.4V -40°C to +85°C @ 4.6V |
| Storage temperature | -40°C to +70°C |
| Capacitance range | 0.25F to 15F |
| Rated voltage | 5.4 VDC / 4.6 VDC |
| Surge voltage | 5.7 VDC |
| Temperature characteristics | Capacitance change: Within ±5% of initial measured value at +25°C (-40°C to +65°C) Internal resistance: Within ±50% of initial measured value at +25°C (at -40°C) |
| Endurance (At rated voltage & max. operating temp) | After 1000 hours: Capacitance change: within ±30% of initial rated value Internal resistance: Within 2 times of initial specified value |
| Projected Load life (At rated voltage & 25°C) | After 10 years: Capacitance change: Within ±30 % of initial rated value Internal resistance: Within 2 times of initial specified value |
| Projected cycle life (From rated voltage to 1/2 rated voltage at 25°C) | After 500,000 cycles: Capacitance change: Within ±30 % of initial rated value Internal resistance: Within 2 times of initial specified value |
| Shelf life | After 4 years at 25°C without load, the capacitor shall meet the specified endurance limits. |
Dimensions
Standard Products
| Part Number | Nom. Cap. (F) | GMV (F)* | ESR DC (mΩ) | ESR AC (mΩ) (1 KHz) | Leakage Current (µA) (72 hrs @ 25C) | Dimensions (mm) | Rated Current (A) | ||
|---|---|---|---|---|---|---|---|---|---|
| L | W | H | |||||||
| PBLL-0.25/5.4 | 0.25 | 0.23 | 3660 | 1460 | 80 | 17 | 18 | 10 | 0.35 |
| PBLL-0.47/5.4 | 0.47 | 0.42 | 1460 | 690 | 80 | 17 | 18 | 10 | 0.78 |
| PBLL-0.5/5.4 | 0.5 | 0.45 | 1560 | 820 | 80 | 20 | 14 | 8 | 0.78 |
| PBLL-0.75/5.4 | 0.75 | 0.68 | 880 | 440 | 80 | 19 | 18 | 10 | 1.2 |
| PBLL-1.0/5.4 | 1 | 0.9 | 760 | 425 | 90 | 21 | 18 | 10 | 1.5 |
| PBLL-1.65/5.4 | 1.65 | 1.49 | 645 | 365 | 180 | 25 | 22 | 12 | 2.1 |
| PBLL-2.0/5.4 | 2 | 1.8 | 565 | 365 | 190 | 25 | 22 | 12 | 2.5 |
| PBLL-2.5/5.4 | 2.5 | 2.25 | 385 | 245 | 190 | 25 | 22 | 12 | 3.4 |
| PBLL-3.0/5.4 | 3 | 2.7 | 325 | 205 | 190 | 25 | 22 | 12 | 4.1 |
| PBLL-4.0/5.4 | 4 | 3.6 | 265 | 185 | 190 | 30 | 22 | 12 | 5.2 |
| PBLL-5.0/5.4 | 5 | 4.5 | 235 | 185 | 200 | 35 | 22 | 12 | 6.2 |
| PBLL-11.0/5.4 | 11 | 9.9 | 160 | 130 | 580 | 38.5 | 26 | 13.5 | 10 |
| PBLL-15.0/5.4 | 15 | 13.5 | 135 | 115 | 620 | 34.5 | 34 | 17.5 | 13 |
*NOTE: GMV = Guaranteed Minimum Value.
