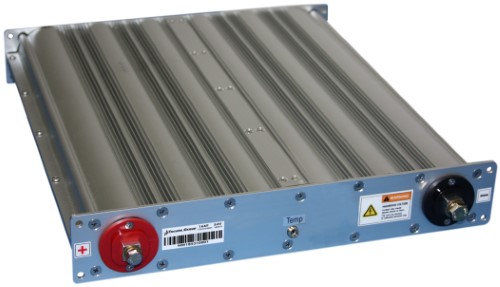

Type PBLH 54V
Ruggedized fully enclosed 54V ultracapacitor module
Features
- NTC thermister
- IP66
- IEC61373 shock & vibration
Applications
- Peak power handling
- Bridge power
- Industrial
- Telecommunication
- Military
- Mobility
Need a custom fit for your design? Click here to get started.
General Specifications
| Item | Performance |
|---|---|
| Operating temperature | -40°C to +65°C |
| Storage temperature | -40°C to +70°C |
| Capacitance | 166F |
| Rated voltage | 54 VDC |
| Temperature characteristics | Capacitance change: Within ±5% of initial measured value at +25°C (at -40°C) Internal resistance: Within ±50% of initial measured value at +25°C (at -40°C) |
| Endurance (At rated voltage & max. operating temp) | After 1500 hours, the capacitor shall meet the following limits: Capacitance change: ±20% of initial rated value Internal resistance: Within 100% of initial specified value |
| Projected Load life (At rated voltage & 25°C) | After 10 years: Capacitance change: Within ±20% of initial rated value Internal resistance: Within 100% of initial specified value |
| Projected cycle life (From rated voltage to 1/2 rated voltage at 25°C) | After 1,000,000 cycles: Capacitance change: Within ±20% of initial rated value Internal resistance: Within 100% of initial specified value |
| Shelf life | After 4 years at 25°C without load, the capacitor shall meet the specified endurance limits. |
Optional aluminum busbar kit and 19" rack mount brackets sold separately. Click here for more information.

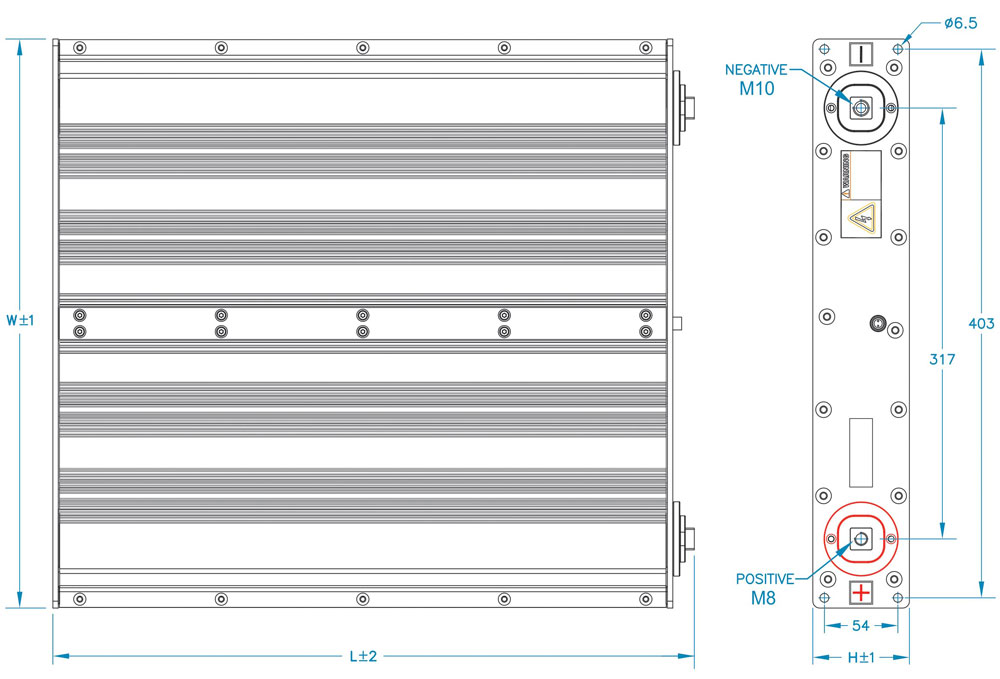

Dimensions
Standard Products
| Part Number | Nom. Cap. (F) | ESR DC (mΩ) | Leakage Current (mA) (72 hrs @ 25C) | Dimensions (mm) | Max Current (A) | Weight/Unit (Kg) | ||
|---|---|---|---|---|---|---|---|---|
| L | W | H | ||||||
| PBLH-54R0/166SD | 166 | 5 | 7 | 471 | 418 | 71 | 2400 | 17.2 |
