Type PBLH 18V

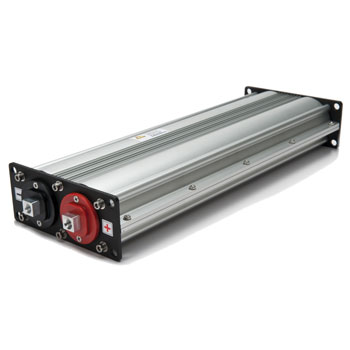

Ruggedized fully enclosed 18V ultracapacitor module

Features

  • NTC thermister

Applications

  • Peak power handling
  • Bridge power
  • Industrial
  • Telecommunication
  • Military
  • Mobility
Need a custom fit for your design? Click here to get started.

General Specifications

ItemPerformance
Operating temperature-40°C to +65°C
Storage temperature-40°C to +70°C
Capacitance500F
Rated voltage18 VDC
Temperature characteristicsCapacitance change: Within ±5% of initial measured value at +25°C (-40°C to +85°C)
Internal resistance: Within ±50% of initial measured value at +25°C (at -40°C)
Endurance
(At rated voltage & max. operating temp)		After 1500 hours, the capacitor shall meet the following limits:
Capacitance change: ±20% of initial rated value
Internal resistance: Within 100% of initial specified value
Projected Load life
(At rated voltage & 25°C)		After 10 years:
Capacitance change: Within ±20% of initial rated value
Internal resistance: Within 100% of initial specified value
Projected cycle life
(From rated voltage to 1/2 rated voltage at 25°C)		After 1,000,000 cycles:
Capacitance change: Within ±20% of initial rated value
Internal resistance: Within 100% of initial specified value
Shelf lifeAfter 4 years at 25°C without load, the capacitor shall meet the specified endurance limits.

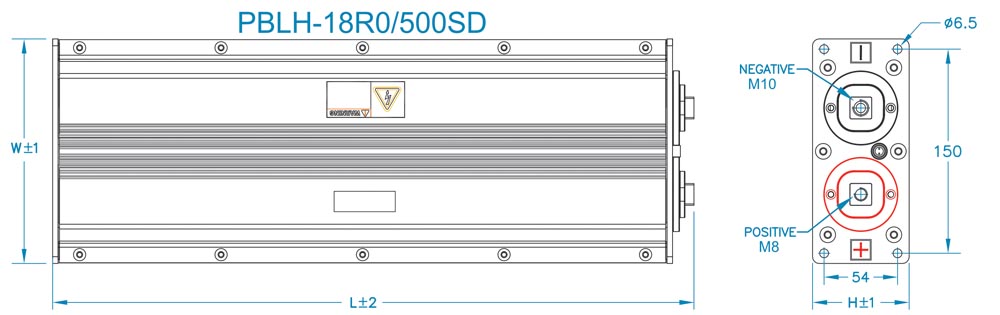

Dimensions


Standard Products

Part Number Nom. Cap. (F)ESR DC (mΩ)Leakage Current (mA)
(72 hrs @ 25C)		Dimensions (mm)Max
Current (A)		Weight/Unit (Kg)
LWH
PBLH-18R0/500SD5001.774701667024005.9
