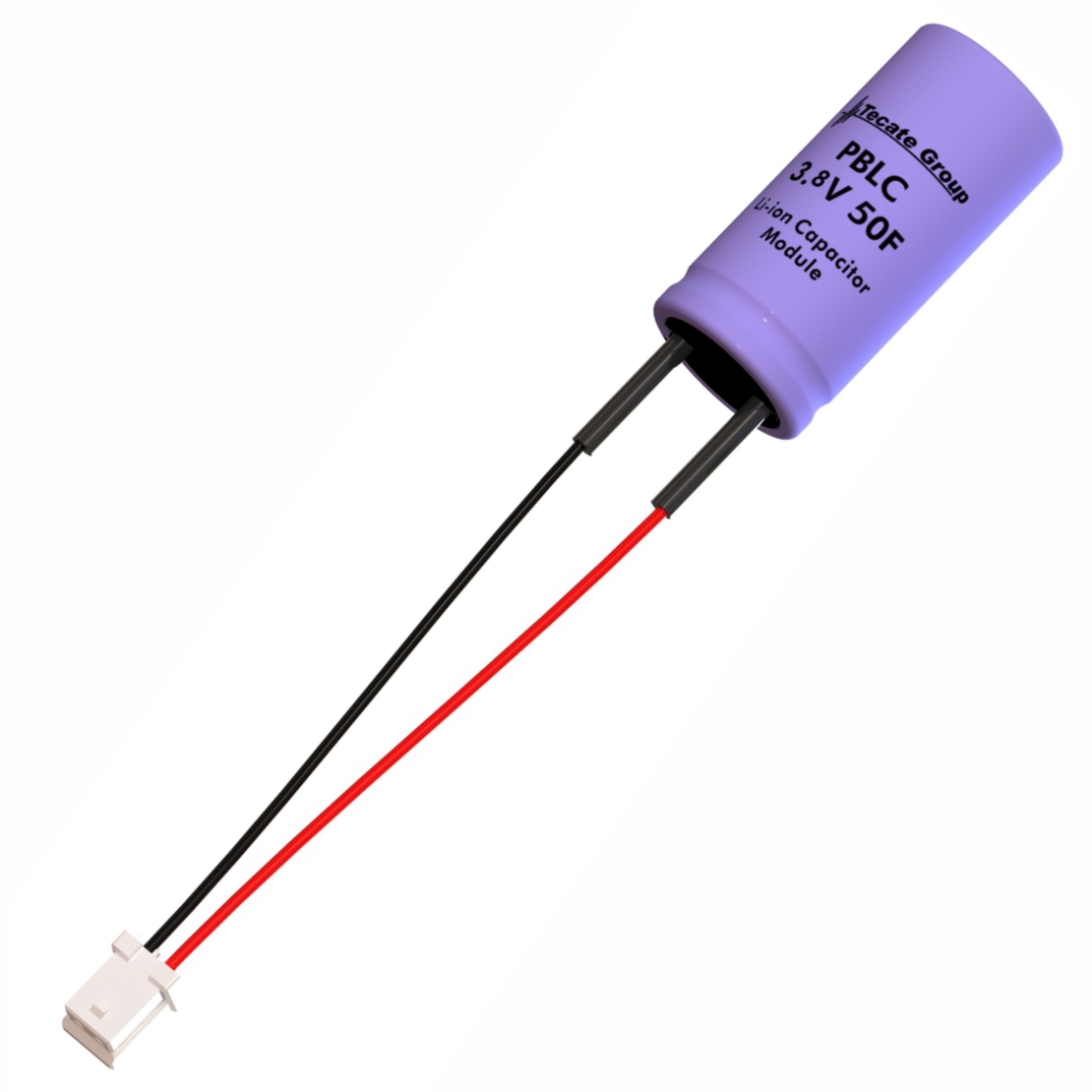

Type PBLC 3.8V
Hybrid capacitor (LIC) with quick connector
Features
- Compact size and energy dense
- Higher voltage
- Quick charge and discharge
- UL recognized RoHS & Reach compliant
- Molex 87439-0200
Applications
- Pulse power demand
- Ride thru power support
- Back up power
- Stand alone or augment existing energy/power source
Need a custom fit for your design? Click here to get started.
General Specifications
| Item | Performance |
|---|---|
| Operating temperature | -15°C to +70°C @ 3.8V -15°C to +85°C @ 3.5V |
| Storage temperature | -25°C to +70°C |
| Capacitance | 50F |
| Capacitance tolerance | +/-20% |
| Rated voltage | 3.8 VDC / 3.5 VDC |
| Minimum rated voltage | 2.2 VDC |
| Surge voltage | 4.2 VDC |
| Temperature characteristics | Capacitance change: Within ±50% of initial measured value at +25°C (-15°C to +70°C) Internal resistance: Within ±800% of initial measured value at +25°C (at -15°C) |
| Endurance (At rated voltage & max. operating temp) | After 1000 hours: Capacitance change: ±30% of minimum rated value Internal resistance: Within 2 times of maximum rated value |
| Projected cycle life | After 500,000 cycles: From 3.8V to 2.5V at 25°C Capacitance change: Within ±30 % of minimum value Internal resistance: Within 2 times of maximum rated value |
| Shelf life | After 1000 hours storage, at 70°C without load, the capacitor shall meet the specified endurance limits. |
Dimensions
Standard Products
| Part Number | UL | Nom. Cap. (F) | ESR AC (mΩ) (1 KHz) | ESR DC Typical (mΩ) | Leakage Current (µA) | Dimensions (mm) | Rated Current (A) | Max Current* (A) | Weight/Unit (grams) | |
|---|---|---|---|---|---|---|---|---|---|---|
| D | L | |||||||||
| PBLC-3R8/50MA2 |  | 50 | 248 | 750 | 2 | 10 | 20 | 0.25 | 1.8 | 3.44 |
* Maximum allowable current for 3 seconds or less.
