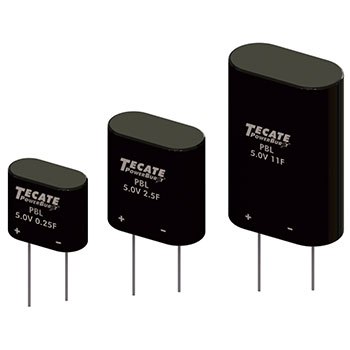

Type PBL-NB
Low leakage current ultracapacitor modules
Features
- Small size and low resistance
- Quick charge and discharge
- RoHS compliant
- UL recognized
Applications
- Pulse power demand
- Hybrid battery packs
- Portable electronic devices
Need a custom fit for your design? Click here to get started.
General Specifications
| Item | Performance |
|---|---|
| Operating temperature | -40°C to +65°C @ 5V -40°C to +85°C @ 4.6V |
| Storage temperature | -40°C to +70°C |
| Capacitance range | 0.25F to 15F |
| Rated voltage | 5 VDC / 4.6 VDC |
| Surge voltage | 5.7 VDC |
| Temperature characteristics | Capacitance change: Within ±5% of initial measured value at +25°C (-40°C to +85°C) Internal resistance: Within ±50% of initial measured value at +25°C (at -40°C) |
| Endurance (At rated voltage & max. operating temp) | After 1000 hours, the capacitor shall meet the following limits: Capacitance change: ±30% of initial rated value Internal resistance: Within 2 times of initial specified value |
| Projected Load life (At rated voltage & 25°C) | After 10 years: Capacitance change: Within ±30 % of initial rated value Internal resistance: Within 2 times of initial specified value |
| Projected cycle life (From rated voltage to 1/2 rated voltage at 25°C) | After 500,000 cycles: Capacitance change: Within ±30 % of initial rated value Internal resistance: Within 2 times of initial specified value |
| Shelf life | After 4 years at 25°C without load, the capacitor shall meet the specified endurance limits. |
Dimensions
Standard Products
| Part Number | Nom. Cap. (F) | GMV (F)* | ESR DC (mΩ) | ESR AC (mΩ) (1 KHz) | Leakage Current (µA) (72 hrs @ 25C) | Dimensions (mm) | Rated Current (A) | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| L | W | H | d | LS | |||||||
| PBL-0.25/5.0NB | 0.25 | 0.23 | 3600 | 1400 | 2 | 17 | 18 | 10 | 0.6 | 12 | 0.36 |
| PBL-0.47/5.0NB | 0.47 | 0.42 | 1400 | 630 | 6 | 17 | 18 | 10 | 0.6 | 12 | 0.79 |
| PBL-0.5/5.0NB | 0.5 | 0.45 | 1500 | 760 | 6 | 20 | 14 | 8 | 0.6 | 9.3 | 0.79 |
| PBL-0.75/5.0NB | 0.75 | 0.68 | 820 | 380 | 8 | 19 | 18 | 10 | 0.6 | 12 | 1.25 |
| PBL-1.0/5.0NB | 1 | 0.9 | 700 | 360 | 10 | 21 | 18 | 10 | 0.6 | 12 | 1.59 |
| PBL-1.65/5.0NB | 1.65 | 1.49 | 580 | 300 | 12 | 25 | 22 | 12 | 0.6 | 12 | 2.28 |
| PBL-2.0/5.0NB | 2 | 1.8 | 500 | 300 | 14 | 25 | 22 | 12 | 0.6 | 15.4 | 2.7 |
| PBL-2.5/5.0NB | 2.5 | 2.25 | 320 | 180 | 15 | 25 | 22 | 12 | 0.6 | 15.4 | 3.75 |
| PBL-3.0/5.0NB | 3 | 2.7 | 260 | 140 | 15 | 25 | 22 | 12 | 0.6 | 15.4 | 4.55 |
| PBL-4.0/5.0NB | 4 | 3.6 | 200 | 120 | 20 | 30 | 22 | 12 | 0.6 | 15.4 | 6 |
| PBL-5.0/5.0NB | 5 | 4.5 | 170 | 120 | 30 | 35 | 22 | 12 | 0.6 | 15.4 | 7.3 |
| PBL-11.0/5.0NB | 11 | 9.9 | 90 | 60 | 55 | 40 | 27 | 14 | 0.8 | 18.2 | 14.92 |
| PBL-15.0/5.0NB | 15 | 13.5 | 70 | 50 | 80 | 37 | 34 | 18 | 0.8 | 24.1 | 19.76 |
*NOTE: GMV = Guaranteed Minimum Value.
