Type PBD

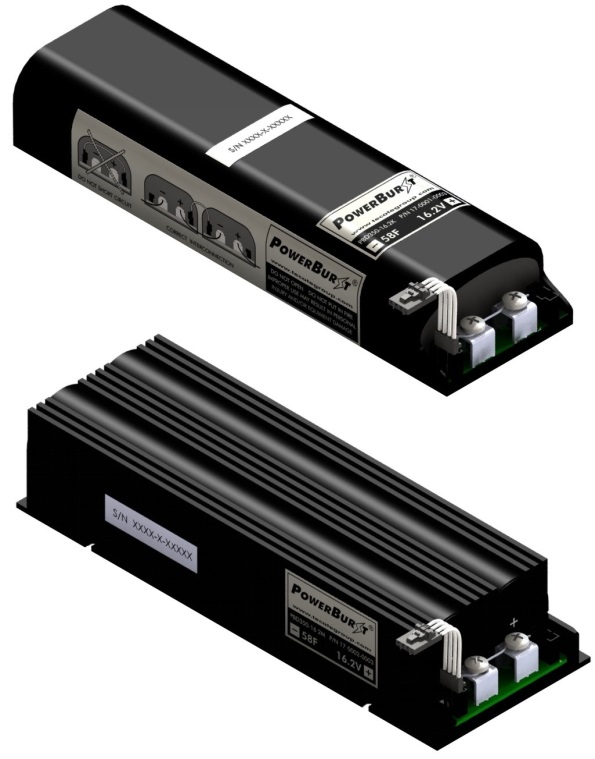

Rugged, enclosed ultracapacitor module with screw terminals
Features
- Active cell balancing
- Fully enclosed module
- 16.2V working voltage
- Screw terminals
- Module-to-module balancing cable included
Applications
- Automotive subsystems
- Heavy-duty vehicle subsystems
- Windmill pitch control systems
- Wireless transmission
Need a custom fit for your design? Click here to get started.
General Specifications
| Item | Performance |
|---|---|
| Operating temperature | -40°C to +65°C |
| Storage temperature | -40°C to +70°C |
| Capacitance | 58F |
| Rated voltage | 16.2 VDC |
| Endurance (At rated voltage & max. operating temp) | After 1000 hours: Capacitance change: Within 20% of initial specified value Internal resistance: Within 100% of initial specified value |
| Projected Load life (At rated voltage & 25°C) | After 10 years: Capacitance change: Within 20% of initial specified value Internal resistance: Within 100% of initial specified value |
| Projected cycle life (From rated voltage to 1/2 rated voltage at 25°C) | After 500,000 cycles: Capacitance change: Within 20% of initial specified value Internal resistance: Within 100% of initial specified value |
| Shelf life | After 4 years at 25°C without load, the capacitor shall meet the specified endurance limits. |

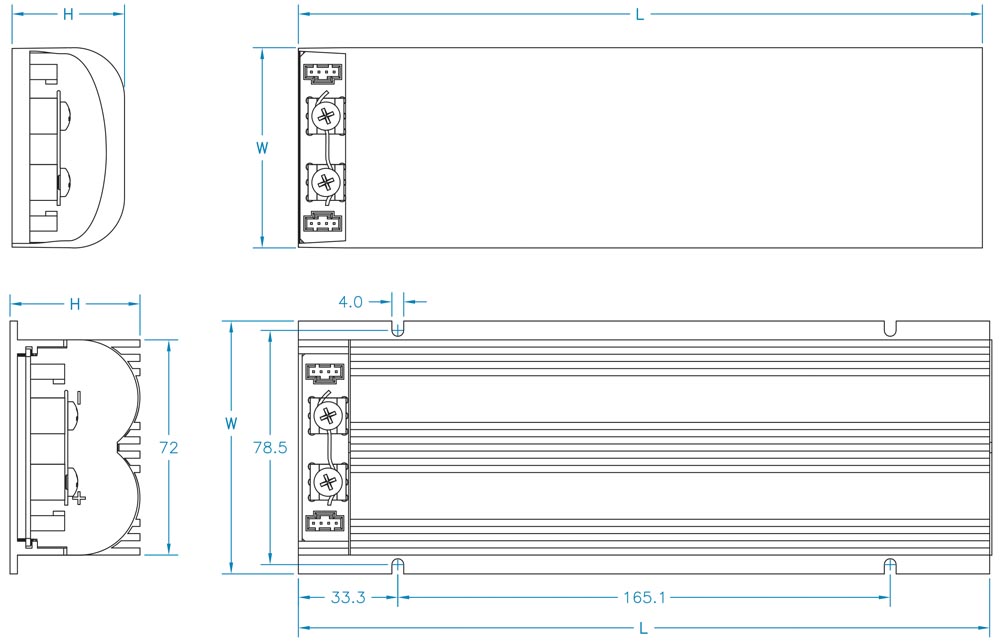

Dimensions
Standard Products
| Part Number | Nom. Cap. (F) | GMV (F)* | ESR DC (mΩ) | ESR AC (mΩ) (1 KHz) | Leakage Current (mA) (72 hrs @ 25C) | Dimensions (mm) | Emax (Wh/kg) | Pmax (W/kg) | Pd (W/kg) | Weight/Unit (grams) | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L | W | H | ||||||||||
| PBD-58/16.2K | 58 | 58 | 28 | 18 | 1 | 229 | 68 | 38 | 4.12 | 10600 | 2730 | 514 |
| PBD-58/16.2M | 58 | 58 | 28 | 18 | 1 | 233 | 85 | 44 | 2.24 | 5800 | 1490 | 943 |
*NOTE: GMV = Guaranteed Minimum Value.
