Tecate Group - MXZX Data Sheet

Type MXZX

SURFACE MOUNT ALUMINUM LOW IMPEDANCE

Features

Wide temperature
Long life 1000 ~ 5000 hour life
Designed for automatic mounting
Solvent resistant
RoHS compliant

Applications

Medical
AMR
Consumer
Telecom
Industrial

Need a custom fit for your design? Click here to get started.

Part Number Example

MXZX	-	050	/	101	M	8X10	TR	F
Type		Rated DC voltage		Capacitance code (µF)	Tolerance code	Size (DxL)	Package code	RoHS compliant
Capacitance Code: First two digits represent significant figure, third digit represents multiplier (number of zeros).
Package Code: TR = Tape & Reel.

General Specifications

Item

Performance

Operating temperature

-55°C to +105°C

Capacitance range

2.2µF to 6,800µF

Capacitance tolerance

±20%

Rated voltage range

6.3 VDC to 100 VDC

Surge voltage

Rated Voltage (VDC)	6.3	10	16	25	35	50	63	80	100
Surge Voltage (VDC)	8	13	20	32	44	63	79	100	125

Temperature characteristics (100Hz)

Impedance Ratio

	Voltage (VDC)
Z Temp.	6.3	10	16	25	35	50	63	80	100
-40°C	3	2	2	2	2	2	2	2	2
-55°C	5	4	4	3	3	3	3	3	3

Endurance
(At rated voltage & max. operating temp)

After 1,000 hours for 4~6.3mm diam. or 2,000 hours for 8~16mm diam. (5,000 hour life available for 8~16mm diam. upon request):

Capacitance change: Within ±25% of initial rated value.
DF: Less than 300% of initial maximum specified value.
Leakage Current: Within initial maximum specified value.

Dissipation factor (@ 120Hz & 20°C)

	Voltage(VDC)
Diameter	6.3	10	16	25	35	50	63	80	100
4	24%	20%	16%	14%	12%	12%
5	24%	20%	16%	14%	12%		10%
6.3	24%	20%	16%	14%	12%	12%	10%	7%
8	28%	24%	20%	16%	14%	14%	12%	10%	8%
10	30%	24%	20%	16%	14%	14%	12%	10%	8%
12.5	32%	26%	22%	16%	14%	14%	12%	10%	8%
16	38%	30%	24%	18%	16%	14%	12%	10%	8%
For capacitors greater than 1,000µF, add 2% per each additional 1,000µF.

Maximum Leakage Current

After 2 minutes @ 20°C: 0.01CV or 3µA, whichever is greater.

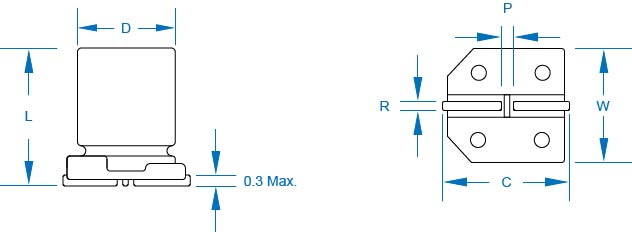

Dimensions

Standard Products

Part Number	Nom. Cap. (µF)	Voltage (VDC)	Impedance (Ω) (@ 100Khz & 20°C)	Ripple (mA) (@ 100Hz & 105°C)	Size	Dimensions (mm)
Part Number	Nom. Cap. (µF)	Voltage (VDC)	Impedance (Ω) (@ 100Khz & 20°C)	Ripple (mA) (@ 100Hz & 105°C)	Size	D +0.5 MAX	L	W ±0.2	H ±0.2	C ±0.2	R MIN	R MAX	P
MXZX-6R3/270M4X6TRF	27	6.3	1.45	90	4X6	4	6 ±0.3	4.3	4.3	5	0.5	0.8	1
MXZX-6R3/470M5X6TRF	47	6.3	0.7	170	5X6	5	6 ±0.3	5.3	5.3	6	0.5	0.8	1.4
MXZX-6R3/560M5X6TRF	56	6.3	0.7	170	5X6	5	6 ±0.3	5.3	5.3	6	0.5	0.8	1.4
MXZX-6R3/101M6X6TRF	100	6.3	0.39	250	6X6	6.3	6 ±0.3	6.6	6.6	7.3	0.5	0.8	2.2
MXZX-6R3/151M6X6TRF	150	6.3	0.39	250	6X6	6.3	6 ±0.3	6.6	6.6	7.3	0.5	0.8	2.2
MXZX-6R3/221M6X6TRF	220	6.3	0.39	250	6X6	6.3	6 ±0.3	6.6	6.6	7.3	0.5	0.8	2.2
MXZX-6R3/331M6X8TRF	330	6.3	0.3	300	6X8	6.3	7.7 ±0.3	6.6	6.6	7.3	0.5	0.8	2.2
MXZX-6R3/471M8X10TRF	470	6.3	0.15	600	8X10	8	10.2 ±0.3	8.3	8.3	9	0.7	1	3.2
MXZX-6R3/681M8X10TRF	680	6.3	0.15	600	8X10	8	10.2 ±0.3	8.3	8.3	9	0.7	1	3.2
MXZX-6R3/102M8X10TRF	1000	6.3	0.15	600	8X10	8	10.2 ±0.3	8.3	8.3	9	0.7	1	3.2
MXZX-6R3/152M10X10TRF	1500	6.3	0.08	850	10X10	10	10.2 ±0.3	10.3	10.3	11	1	1.4	4.6
MXZX-6R3/332M12X14TRF	3300	6.3	0.058	1150	12X14	12.5	13.5 ±0.5	12.8	12.8	13.5	1	1.4	4.6
MXZX-6R3/682M16X16TRF	6800	6.3	0.035	1800	16X16	16	16.5 ±0.5	16.3	16.3	17.3	1.7	2.1	7
MXZX-010/220M4X6TRF	22	10	1.45	90	4X6	4	6 ±0.3	4.3	4.3	5	0.5	0.8	1
MXZX-010/330M5X6TRF	33	10	0.7	170	5X6	5	6 ±0.3	5.3	5.3	6	0.5	0.8	1.4
MXZX-010/680M6X6TRF	68	10	0.39	250	6X6	6.3	6 ±0.3	6.6	6.6	7.3	0.5	0.8	2.2
MXZX-010/151M6X6TRF	150	10	0.39	250	6X6	6.3	6 ±0.3	6.6	6.6	7.3	0.5	0.8	2.2
MXZX-010/221M6X8TRF	220	10	0.3	300	6X8	6.3	7.7 ±0.3	6.6	6.6	7.3	0.5	0.8	2.2
MXZX-010/331M8X10TRF	330	10	0.15	600	8X10	8	10.2 ±0.3	8.3	8.3	9	0.7	1	3.2
MXZX-010/471M8X10TRF	470	10	0.15	600	8X10	8	10.2 ±0.3	8.3	8.3	9	0.7	1	3.2
MXZX-010/102M10X10TRF	1000	10	0.08	850	10X10	10	10.2 ±0.3	10.3	10.3	11	1	1.4	4.6
MXZX-010/222M12X14TRF	2200	10	0.058	150	12X14	12.5	13.5 ±0.5	12.8	12.8	13.5	1	1.4	4.6
MXZX-010/472M16X16TRF	4700	10	0.035	1800	16X16	16	16.5 ±0.5	16.3	16.3	17.3	1.7	2.1	7
MXZX-016/150M4X5TRF	15	16	1.45	90	4X6	4	6 ±0.3	4.3	4.3	5	0.5	0.8	1
MXZX-016/220M5X6TRF	22	16	0.7	170	5X6	5	6 ±0.3	5.3	5.3	6	0.5	0.8	1.4
MXZX-016/470M6X6TRF	47	16	0.39	250	6X6	6.3	6 ±0.3	6.6	6.6	7.3	0.5	0.8	2.2
MXZX-016/680M6X6TRF	68	16	0.39	250	6X6	6.3	6 ±0.3	6.6	6.6	7.3	0.5	0.8	2.2
MXZX-016/101M6X6TRF	100	16	0.39	250	6X6	6.3	6 ±0.3	6.6	6.6	7.3	0.5	0.8	2.2
MXZX-016/151M6X8TRF	150	16	0.3	300	6X8	6.3	7.7 ±0.3	6.6	6.6	7.3	0.5	0.8	2.2
MXZX-016/221M6X8TRF	220	16	0.3	300	6X8	6.3	7.7 ±0.3	6.6	6.6	7.3	0.5	0.8	2.2
MXZX-016/331M8X10TRF	330	16	0.15	600	8X10	8	10.2 ±0.3	8.3	8.3	9	0.7	1	3.2
MXZX-016/471M8X10TRF	470	16	0.15	600	8X10	8	10.2 ±0.3	8.3	8.3	9	0.7	1	3.2
MXZX-016/681M10X10TRF	680	16	0.08	850	10X10	10	10.2 ±0.3	10.3	10.3	11	1	1.4	4.6
MXZX-016/152M12X14TRF	1500	16	0.058	1150	12X14	12.5	13.5 ±0.5	12.8	12.8	13.5	1	1.4	4.6
MXZX-016/332M16X16TRF	3300	16	0.035	1800	16X16	16	16.5 ±0.5	16.3	16.3	17.3	1.7	2.1	7
MXZX-025/100M4X6TRF	10	25	1.45	90	4X6	4	6 ±0.3	4.3	4.3	5	0.5	0.8	1
MXZX-025/150M5X6TRF	15	25	0.7	170	5X6	5	6 ±0.3	5.3	5.3	6	0.5	0.8	1.4
MXZX-025/220M5X6TRF	22	25	0.7	170	5X6	5	6 ±0.3	5.3	5.3	6	0.5	0.8	1.4
MXZX-025/330M6X6TRF	33	25	0.39	250	6X6	6.3	6 ±0.3	6.6	6.6	7.3	0.5	0.8	2.2
MXZX-025/470M6X6TRF	47	25	0.39	250	6X6	6.3	6 ±0.3	6.6	6.6	7.3	0.5	0.8	2.2
MXZX-025/560M6X6TRF	56	25	0.39	250	6X6	6.3	6 ±0.3	6.6	6.6	7.3	0.5	0.8	2.2
MXZX-025/680M6X6TRF	68	25	0.39	250	6X6	6.3	6 ±0.3	6.6	6.6	7.3	0.5	0.8	2.2
MXZX-025/101M6X8TRF	100	25	0.3	300	6X8	6.3	7.7 ±0.3	6.6	6.6	7.3	0.5	0.8	2.2
MXZX-025/151M8X10TRF	150	25	0.15	600	8X10	8	10.2 ±0.3	8.3	8.3	9	0.7	1	3.2
MXZX-025/221M8X10TRF	220	25	0.15	600	8X10	8	10.2 ±0.3	8.3	8.3	9	0.7	1	3.2
MXZX-025/331M8X10TRF	330	25	0.15	600	8X10	8	10.2 ±0.3	8.3	8.3	9	0.7	1	3.2
MXZX-025/471M10X10TRF	470	25	0.08	850	10X10	10	10.2 ±0.3	10.3	10.3	11	1	1.4	4.6
MXZX-025/102M12X14TRF	1000	25	0.058	1150	12X14	12.5	13.5 ±0.5	12.8	12.8	13.5	1	1.4	4.6
MXZX-025/222M16X16TRF	2200	25	0.035	1800	16X16	16	16.5 ±0.5	16.3	16.3	17.3	1.7	2.1	7
MXZX-035/4R7M4X6TRF	4.7	35	1.45	90	4X6	4	6 ±0.3	4.3	4.3	5	0.5	0.8	1
MXZX-035/100M5X6TRF	10	35	0.7	170	5X6	5	6 ±0.3	5.3	5.3	6	0.5	0.8	1.4
MXZX-035/150M5X6TRF	15	35	0.7	170	5X6	5	6 ±0.3	5.3	5.3	6	0.5	0.8	1.4
MXZX-035/220M5X6TRF	22	35	0.7	170	5X6	5	6 ±0.3	5.3	5.3	6	0.5	0.8	1.4
MXZX-035/330M6X6TRF	33	35	0.39	250	6X6	6.3	6 ±0.3	6.6	6.6	7.3	0.5	0.8	2.2
MXZX-035/470M6X6TRF	47	35	0.39	250	6X6	6.3	6 ±0.3	6.6	6.6	7.3	0.5	0.8	2.2
MXZX-035/680M6X8TRF	68	35	0.3	300	6X8	6.3	7.7 ±0.3	6.6	6.6	7.3	0.5	0.8	2.2
MXZX-035/101M8X10TRF	100	35	0.15	600	8X10	8	10.2 ±0.3	8.3	8.3	9	0.7	1	3.2
MXZX-035/151M8X10TRF	150	35	0.15	600	8X10	8	10.2 ±0.3	8.3	8.3	9	0.7	1	3.2
MXZX-035/221M8X10TRF	220	35	0.15	600	8X10	8	10.2 ±0.3	8.3	8.3	9	0.7	1	3.2
MXZX-035/331M10X10TRF	330	35	0.08	850	10X10	10	10.2 ±0.3	10.3	10.3	11	1	1.4	4.6
MXZX-035/471M12X14TRF	470	35	0.058	1150	12X14	12.5	13.5 ±0.5	12.8	12.8	13.5	1	1.4	4.6
MXZX-035/681M12X14TRF	680	35	0.058	1150	12X14	12.5	13.5 ±0.5	12.8	12.8	13.5	1	1.4	4.6
MXZX-035/152M16X16TRF	1500	35	0.035	1800	16X16	16	16.5 ±0.5	16.3	16.3	17.3	1.7	2.1	7
MXZX-035/222M16X16TRF	2200	35	0.035	1800	16X16	16	16.5 ±0.5	16.3	16.3	17.3	1.7	2.1	7
MXZX-050/4R7M4X6TRF	4.7	50	2.55	64	4X6	4	6 ±0.3	4.3	4.3	5	0.5	0.8	1
MXZX-050/100M6X6TRF	10	50	0.52	215	6X6	6.3	6 ±0.3	6.6	6.6	7.3	0.5	0.8	2.2
MXZX-050/220M6X6TRF	22	50	0.52	215	6X6	6.3	6 ±0.3	6.6	6.6	7.3	0.5	0.8	2.2
MXZX-050/330M6X8TRF	33	50	0.44	243	6X8	6.3	7.7 ±0.3	6.6	6.6	7.3	0.5	0.8	2.2
MXZX-050/470M6X8TRF	47	50	0.44	243	6X8	6.3	7.7 ±0.3	6.6	6.6	7.3	0.5	0.8	2.2
MXZX-050/101M8X10TRF	100	50	0.22	400	8X10	8	10.2 ±0.3	8.3	8.3	9	0.7	1	3.2
MXZX-050/221M10X10TRF	220	50	0.13	585	10X10	10	10.2 ±0.3	10.3	10.3	11	1	1.4	4.6
MXZX-050/331M12X14TRF	330	50	0.1	800	12X14	12.5	13.5 ±0.5	12.8	12.8	13.5	1	1.4	4.6
MXZX-050/681M16X16TRF	680	50	0.073	1610	16X16	16	16.5 ±0.5	16.3	16.3	17.3	1.7	2.1	7
MXZX-050/102M16X16TRF	1000	50	0.06	1610	16X16	16	16.5 ±0.5	16.3	16.3	17.3	1.7	2.1	7
MXZX-063/4R7M5X6TRF	4.7	63	2	55	5X6	5	6 ±0.3	5.3	5.3	6	0.5	0.8	1.4
MXZX-063/100M6X6TRF	10	63	1	90	6X6	6.3	6 ±0.3	6.6	6.6	7.3	0.5	0.8	2.2
MXZX-063/220M6X8TRF	22	63	0.8	135	6X8	6.3	7.7 ±0.3	6.6	6.6	7.3	0.5	0.8	2.2
MXZX-063/330M8X10TRF	33	63	0.35	280	8X10	8	10.2 ±0.3	8.3	8.3	9	0.7	1	3.2
MXZX-063/470M8X10TRF	47	63	0.35	280	8X10	8	10.2 ±0.3	8.3	8.3	9	0.7	1	3.2
MXZX-063/101M10X10TRF	100	63	0.2	480	10X10	10	10.2 ±0.3	10.3	10.3	11	1	1.4	4.6
MXZX-063/221M12X14TRF	220	63	0.14	800	12X14	12.5	13.5 ±0.5	12.8	12.8	13.5	1	1.4	4.6
MXZX-063/471M16X16TRF	470	63	0.065	1410	16X16	16	16.5 ±0.5	16.3	16.3	17.3	1.7	2.1	7
MXZX-100/2R2M6X6TRF	2.2	80	2.7	42	6X6	6.3	6 ±0.3	6.6	6.6	7.3	0.5	0.8	2.2
MXZX-100/3R3M6X6TRF	3.3	80	2.4	45	6X6	6.3	6 ±0.3	6.6	6.6	7.3	0.5	0.8	2.2
MXZX-080/4R7M6X6TRF	4.7	80	2.4	45	6X6	6.3	6 ±0.3	6.6	6.6	7.3	0.5	0.8	2.2
MXZX-100/4R7M6X6TRF	4.7	80	2.4	45	6X6	6.3	6 ±0.3	6.6	6.6	7.3	0.5	0.8	2.2
MXZX-080/100M6X8TRF	10	80	2	65	6X8	6.3	7.7 ±0.3	6.6	6.6	7.3	0.5	0.8	2.2
MXZX-100/100M6X8TRF	10	80	2	65	6X8	6.3	7.7 ±0.3	6.6	6.6	7.3	0.5	0.8	2.2
MXZX-080/220M8X10TRF	22	80	0.9	140	8X10	8	10.2 ±0.3	8.3	8.3	9	0.7	1	3.2
MXZX-080/330M8X10TRF	33	80	0.9	140	8X10	8	10.2 ±0.3	8.3	8.3	9	0.7	1	3.2
MXZX-080/470M10X10TRF	47	80	0.5	220	10X10	10	10.2 ±0.3	10.3	10.3	11	1	1.4	4.6
MXZX-080/680M12X14TRF	68	80	0.24	500	12X14	12.5	13.5 ±0.5	12.8	12.8	13.5	1	1.4	4.6
MXZX-080/101M12X14TRF	100	80	0.24	500	12X14	12.5	13.5 ±0.5	12.8	12.8	13.5	1	1.4	4.6
MXZX-080/151M12X14TRF	150	80	0.24	500	12X14	12.5	13.5 ±0.5	12.8	12.8	13.5	1	1.4	4.6
MXZX-080/331M16X16TRF	330	80	0.14	800	16X16	16	16.5 ±0.5	16.3	16.3	17.3	1.7	2.1	7
MXZX-100/220M8X10TRF	22	100	0.9	140	8X10	8	10.2 ±0.3	8.3	8.3	9	0.7	1	3.2
MXZX-100/330M10X10TRF	33	100	0.5	200	10X10	10	10.2 ±0.3	10.3	10.3	11	1	1.4	4.6
MXZX-100/470M12X14TRF	47	100	0.24	500	12X14	12.5	13.5 ±0.5	12.8	12.8	13.5	1	1.4	4.6
MXZX-100/680M12X14TRF	68	100	0.24	500	12X14	12.5	13.5 ±0.5	12.8	12.8	13.5	1	1.4	4.6
MXZX-100/101M16X16TRF	100	100	0.14	800	16X16	16	16.5 ±0.5	16.3	16.3	17.3	1.7	2.1	7
MXZX-100/151M16X16TRF	150	100	0.14	800	16X16	16	16.5 ±0.5	16.3	16.3	17.3	1.7	2.1	7
