Type MXZH

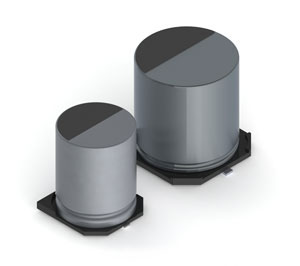

SURFACE MOUNT ALUMINUM LONG LIFE LOW IMPEDANCE

Features

Low impedance
3000hrs life @105°C
Wide temperature range
Designed for automatic mounting
Solvent resistant

Need a custom fit for your design? Click here to get started.

Part Number Example

MXZH	-	6R3	/	470	M	5X6	TR	F
Type		Rated DC voltage		Capacitance code (µF)	Tolerance code	Size (DxL)	Package code	RoHS compliant
Capacitance Code: First two digits represent significant figure, third digit represents multiplier (number of zeros).
Package Code: TR = Tape & Reel.

General Specifications

Item

Performance

Operating temperature

-40°C to +105°C

Capacitance range

10µF to 330µF

Capacitance tolerance

±20%

Rated voltage range

6.3 VDC to 50 VDC

Surge voltage

Rated Voltage (VDC)	6.3	10	16	25	35	50
Surge Voltage (VDC)	8	13	20	32	44	63

Endurance
(At rated voltage & max. operating temp)

After 1,000 hours for 4~6.3mm diam. or 2,000 hours for 8~16mm diam. (5,000 hour life available for 8~16mm diam. upon request):

Capacitance change: Within ±25% of initial rated value.
DF: Less than 300% of initial maximum specified value.
Leakage Current: Within initial maximum specified value.

Dissipation factor (@ 120Hz & 20°C)

	Voltage(VDC)
Diameter	6.3	10	16	25	35	50
5	28%	24%	22%	16%	13%
6.3	28%	24%	22%	16%	13%	12%
For capacitors greater than 1,000µF, add 2% per each additional 1,000µF.

Maximum Leakage Current

After 2 minutes @ 20°C: 0.01CV or 3µA, whichever is greater.

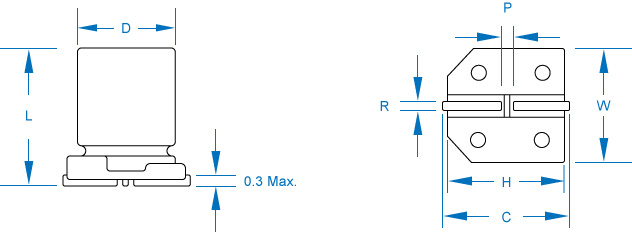

Dimensions

Standard Products

Part Number	Nom. Cap. (µF)	Voltage (VDC)	Impedance (Ω) (@ 100Khz & 20°C)	Ripple (mA) (@ 100Hz & 105°C)	Size	Dimensions (mm)
Part Number	Nom. Cap. (µF)	Voltage (VDC)	Impedance (Ω) (@ 100Khz & 20°C)	Ripple (mA) (@ 100Hz & 105°C)	Size	D +0.5 MAX	L ±0.3	W ±0.2	H ±0.2	C ±0.2	R MIN	R MAX	P
MXZH-6R3/470M5X6TRF	47	6.3	1.3	95	5X6	5	6	5.3	5.3	6	0.5	0.8	1.4
MXZH-6R3/101M6X6TRF	100	6.3	0.7	140	6X6	6.3	6	6.6	6.6	7.3	0.5	0.8	2.2
MXZH-6R3/221M6X8TRF	220	6.3	0.6	230	6X8	6.3	7.7	6.6	6.6	7.3	0.5	0.8	2.2
MXZH-6R3/331M6X8TRF	330	6.3	0.6	230	6X8	6.3	7.7	6.6	6.6	7.3	0.5	0.8	2.2
MXZH-010/330M5X6TRF	33	10	1.3	95	5X6	5	6	5.3	5.3	6	0.5	0.8	1.4
MXZH-010/470M5X6TRF	47	10	1.3	95	5X6	5	6	5.3	5.3	6	0.5	0.8	1.4
MXZH-010/101M6X6TRF	100	10	0.7	140	6X6	6.3	6	6.6	6.6	7.3	0.5	0.8	2.2
MXZH-010/151M6X6TRF	150	10	0.7	140	6X6	6.3	6	6.6	6.6	7.3	0.5	0.8	2.2
MXZH-016/220M5X6TRF	22	16	1.3	95	5X6	5	6	5.3	5.3	6	0.5	0.8	1.4
MXZH-016/470M6X6TRF	47	16	0.7	140	6X6	6.3	6	6.6	6.6	7.3	0.5	0.8	2.2
MXZH-016/101M6X6TRF	100	16	0.7	140	6X6	6.3	6	6.6	6.6	7.3	0.5	0.8	2.2
MXZH-016/151M6X8TRF	150	16	0.6	230	6X8	6.3	7.7	6.6	6.6	7.3	0.5	0.8	2.2
MXZH-016/221M6X8TRF	220	16	0.6	230	6X8	6.3	7.7	6.6	6.6	7.3	0.5	0.8	2.2
MXZH-025/220M5X6TRF	22	25	1.3	95	5X6	5	6	5.3	5.3	6	0.5	0.8	1.4
MXZH-025/330M6X6TRF	33	25	0.7	140	6X6	6.3	6	6.6	6.6	7.3	0.5	0.8	2.2
MXZH-025/470M6X6TRF	47	25	0.7	140	6X6	6.3	6	6.6	6.6	7.3	0.5	0.8	2.2
MXZH-025/101M6X8TRF	100	25	0.6	230	6X8	6.3	7.7	6.6	6.6	7.3	0.5	0.8	2.2
MXZH-035/100M5X6TRF	10	35	1.3	95	5X6	5	6	5.3	5.3	6	0.5	0.8	1.4
MXZH-035/220M6X6TRF	22	35	0.7	140	6X6	6.3	6	6.6	6.6	7.3	0.5	0.8	2.2
MXZH-035/470M6X8TRF	47	35	0.6	230	6X8	6.3	7.7	6.6	6.6	7.3	0.5	0.8	2.2
MXZH-050/100M6X6TRF	10	50	2	70	6X6	6.3	6	6.6	6.6	7.3	0.5	0.8	2.2
MXZH-050/220M6X6TRF	22	50	2	70	6X6	6.3	6	6.6	6.6	7.3	0.5	0.8	2.2
MXZH-050/330M6X8TRF	33	50	1.35	100	6X8	6.3	7.7	6.6	6.6	7.3	0.5	0.8	2.2
