Type MXWRU
SURFACE MOUNT ALUMINUM LONG LIFE LOW IMPEDANCE

Features

  • Low impedance
  • Wide temperature
  • 4~6.3 D & 10x7.7= 2000hrs, 8~18 D 5000hrs life
  • Designed for automatic mounting
  • Solvent resistant
  • RoHS compliant

Applications

  • Medical
  • AMR
  • Consumer
  • Telecom
  • Industrial

Part Number Example

MXWRU-025/222M16X16TRF
Type Rated
voltage
 Capacitance
code (µF)
Tolerance
code
Size (DxL)Package
code
RoHS
compliant
Capacitance Code: First two digits represent significant figure, third digit represents multiplier (number of zeros).
Package Code: TR = Tape & Reel.

General Specifications

ItemPerformance
Operating temperature-55°C to +105°C
Capacitance range4.7µF to 12,000µF
Capacitance tolerance±20%
Rated voltage range6.3 VDC to 100 VDC
Surge voltage
Rated Voltage (VDC)6.310162535506380100
Surge Voltage (VDC)8132032446379100125
Temperature characteristics (100Hz)Impedance Ratio
 Voltage (VDC)
Z Temp.6.310162535506380100
-40°C333333222
-55°C444333333
Endurance
(At rated voltage & max. operating temp)
After 4~6.3 diam. & 10x7.7= 2000 hours, 8~18 diam 5000 hours:

Capacitance change: Within ±30% of initial rated value.
DF: Less than 300% of initial maximum specified value.
Leakage Current: Within initial maximum specified value.
Dissipation factor (@ 120Hz & 20°C)
 Voltage(VDC)
Diameter6.310162535506380100
426%20%16%14%12%12%
526%20%16%14%12%
6.326%20%16%14%12%12%8%
828%24%22%16%14%14%
1028%24%22%16%14%14%8%8%7%
12.530%26%22%16%14%14%8%8%7%
1638%30%26%18%14%14%8%8%7%
1850%38%30%20%16%14%8%8%7%
For capacitors greater than 1,000µF, add 2% per each additional 1,000µF.
Maximum Leakage CurrentAfter 2 minutes @ 20°C: 0.01CV or 3µA, whichever is greater.

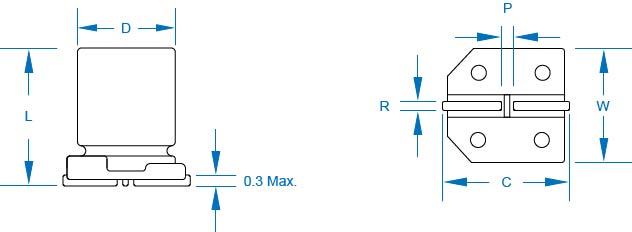

Dimensions


Standard Products

Part Number Nom. Cap. (µF) Voltage (VDC)Impedance (Ω)
(@ 100Khz & 20°C)
Ripple (mA)
(@ 100Hz & 105°C)
Leakage Current (mA)SizeDimensions (mm)
D +0.5 MAXLW ±0.2H ±0.2C ±0.2R MINR MAXP
MXWRU-6R3/270M4X6TRF276.31.459034X64±0.34.34.350.50.81
MXWRU-6R3/330M5X6TRF336.30.717035X65±0.35.35.360.50.81.4
MXWRU-6R3/470M5X6TRF476.30.717035X65±0.35.35.360.50.81.4
MXWRU-6R3/560M5X6TRF566.30.71703.55X65±0.35.35.360.50.81.4
MXWRU-6R3/680M6X6TRF686.30.392504.36X66.3±0.36.66.67.30.50.82.2
MXWRU-6R3/101M5X6TRF1006.30.71706.35X65±0.35.35.360.50.81.4
MXWRU-6R3/101M6X6TRF1006.30.392506.36X66.3±0.36.66.67.30.50.82.2
MXWRU-6R3/151M6X6TRF1506.30.392509.56X66.3±0.36.66.67.30.50.82.2
MXWRU-6R3/221M6X6TRF2206.30.3925013.96X66.3±0.36.66.67.30.50.82.2
MXWRU-6R3/331M6X8TRF3306.30.330020.86X86.37.7 ±0.36.66.67.30.50.82.2
MXWRU-6R3/471M8X10TRF4706.30.1760029.68X10810.2 ±0.38.38.390.713.2
MXWRU-6R3/681M10X8TRF6806.30.1760042.910X8107.7 ±0.310.310.31111.44.6
MXWRU-6R3/681M8X10TRF6806.30.1760042.98X10810.2 ±0.38.38.390.713.2
MXWRU-6R3/102M8X10TRF10006.30.17600638X10810.2 ±0.38.38.390.713.2
MXWRU-6R3/152M10X10TRF15006.30.0985094.510X101010.2 ±0.310.310.31111.44.6
MXWRU-6R3/222M12X14TRF22006.30.06110013912X1412.513.5 ±0.512.812.813.511.44.6
MXWRU-6R3/682M16X16TRF68006.30.035180042916X161616.5 ±0.516.316.317.31.72.17
MXWRU-6R3/822M18X16TRF82006.30.033206051718X161816.5 ±0.51919201.72.17
MXWRU-6R3/103M18X16TRF100006.30.033206063018X161816.5 ±0.51919201.72.17
MXWRU-6R3/123M18X21TRF120006.30.028226075618X211821.5 ±0.51919201.72.17
MXWRU-010/220M4X6TRF22101.459034X64±0.34.34.350.50.81
MXWRU-010/270M5X6TRF27100.717035X65±0.35.35.360.50.81.4
MXWRU-010/330M5X6TRF33100.71703.35X65±0.35.35.360.50.81.4
MXWRU-010/470M6X6TRF47100.392504.76X66.3±0.36.66.67.30.50.82.2
MXWRU-010/560M6X6TRF56100.392505.66X66.3±0.36.66.67.30.50.82.2
MXWRU-010/680M6X6TRF68100.392506.86X66.3±0.36.66.67.30.50.82.2
MXWRU-010/101M6X6TRF100100.39250106X66.3±0.36.66.67.30.50.82.2
MXWRU-010/151M6X6TRF150100.39250156X66.3±0.36.66.67.30.50.82.2
MXWRU-010/221M6X8TRF220100.3300226X86.37.7 ±0.36.66.67.30.50.82.2
MXWRU-010/331M8X10TRF330100.17600338X10810.2 ±0.38.38.390.713.2
MXWRU-010/471M10X8TRF470100.176004710X8107.7 ±0.310.310.31111.44.6
MXWRU-010/471M8X10TRF470100.17600478X10810.2 ±0.38.38.390.713.2
MXWRU-010/681M10X10TRF680100.098506810X101010.2 ±0.310.310.31111.44.6
MXWRU-010/102M10X10TRF1000100.0985010010X101010.2 ±0.310.310.31111.44.6
MXWRU-010/152M10X14TRF1500100.0795015010X141013.5 ±0.510.310.31111.44.6
MXWRU-010/152M12X14TRF1500100.06110015012X1412.513.5 ±0.512.812.813.511.44.6
MXWRU-010/222M12X14TRF2200100.06110022012X1412.513.5 ±0.512.812.813.511.44.6
MXWRU-010/472M16X16TRF4700100.035180047016X161616.5 ±0.516.316.317.31.72.17
MXWRU-010/682M18X16TRF6800100.033206068018X161816.5 ±0.51919201.72.17
MXWRU-010/822M18X21TRF8200100.028226082018X211821.5 ±0.51919201.72.17
MXWRU-016/150M4X6TRF15161.45902.44X64±0.34.34.350.50.81
MXWRU-016/220M5X6TRF22160.71703.55X65±0.35.35.360.50.81.4
MXWRU-016/270M5X6TRF27160.71704.35X65±0.35.35.360.50.81.4
MXWRU-016/330M6X6TRF33160.392505.36X66.3±0.36.66.67.30.50.82.2
MXWRU-016/470M6X6TRF47160.392507.56X66.3±0.36.66.67.30.50.82.2
MXWRU-016/560M6X6TRF56160.3925096X66.3±0.36.66.67.30.50.82.2
MXWRU-016/680M6X6TRF68160.3925010.96X66.3±0.36.66.67.30.50.82.2
MXWRU-016/101M6X6TRF100160.39250166X66.3±0.36.66.67.30.50.82.2
MXWRU-016/151M6X8TRF150160.3300246X86.37.7 ±0.36.66.67.30.50.82.2
MXWRU-016/221M6X8TRF220160.330035.26X86.37.7 ±0.36.66.67.30.50.82.2
MXWRU-016/331M10X8TRF330160.1760052.810X8107.7 ±0.310.310.31111.44.6
MXWRU-016/331M8X10TRF330160.1760052.88X10810.2 ±0.38.38.390.713.2
MXWRU-016/471M8X10TRF470160.1760075.28X10810.2 ±0.38.38.390.713.2
MXWRU-016/681M10X10TRF680160.0985010910X101010.2 ±0.310.310.31111.44.6
MXWRU-016/102M10X14TRF1000160.0795016010X141013.5 ±0.510.310.31111.44.6
MXWRU-016/102M12X14TRF1000160.06110016012X1412.513.5 ±0.512.812.813.511.44.6
MXWRU-016/152M12X14TRF1500160.06110024012X1412.513.5 ±0.512.812.813.511.44.6
MXWRU-016/332M16X16TRF3300160.035180052816X161616.5 ±0.516.316.317.31.72.17
MXWRU-016/472M18X16TRF4700160.033206075218X161816.5 ±0.51919201.72.17
MXWRU-016/562M18X21TRF5600160.028226089618X211821.5 ±0.51919201.72.17
MXWRU-025/100M4X6TRF10251.459034X64±0.34.34.350.50.81
MXWRU-025/150M5X6TRF15250.71703.85X65±0.35.35.360.50.81.4
MXWRU-025/220M5X6TRF22250.71705.55X65±0.35.35.360.50.81.4
MXWRU-025/270M6X6TRF27250.392506.86X66.3±0.36.66.67.30.50.82.2
MXWRU-025/330M6X6TRF33250.392508.36X66.3±0.36.66.67.30.50.82.2
MXWRU-025/470M6X6TRF47250.3925011.86X66.3±0.36.66.67.30.50.82.2
MXWRU-025/560M6X6TRF56250.39250146X66.3±0.36.66.67.30.50.82.2
MXWRU-025/680M6X6TRF68250.39250176X66.3±0.36.66.67.30.50.82.2
MXWRU-025/101M6X8TRF100250.3300256X86.37.7 ±0.36.66.67.30.50.82.2
MXWRU-025/151M8X10TRF150250.1760037.58X10810.2 ±0.38.38.390.713.2
MXWRU-025/221M10X8TRF220250.176005510X8107.7 ±0.310.310.31111.44.6
MXWRU-025/221M8X10TRF220250.17600558X10810.2 ±0.38.38.390.713.2
MXWRU-025/331M8X10TRF330250.1760082.58X10810.2 ±0.38.38.390.713.2
MXWRU-025/471M10X10TRF470250.0985011810X101010.2 ±0.310.310.31111.44.6
MXWRU-025/681M10X14TRF680250.0795017010X141013.5 ±0.510.310.31111.44.6
MXWRU-025/681M12X14TRF680250.06110017012X1412.513.5 ±0.512.812.813.511.44.6
MXWRU-025/102M12X14TRF1000250.06110025012X1412.513.5 ±0.512.812.813.511.44.6
MXWRU-025/152M16X16TRF1500250.035180037516X161616.5 ±0.516.316.317.31.72.17
MXWRU-025/222M16X16TRF2200250.035180055016X161616.5 ±0.516.316.317.31.72.17
MXWRU-025/332M18X16TRF3300250.033206082518X161816.5 ±0.51919201.72.17
MXWRU-025/392M18X21TRF3900250.028226097518X211821.5 ±0.51919201.72.17
MXWRU-035/4R7M4X6TRF4.7351.459034X64±0.34.34.350.50.81
MXWRU-035/100M5X6TRF10350.71703.55X65±0.35.35.360.50.81.4
MXWRU-035/150M5X6TRF15350.71705.35X65±0.35.35.360.50.81.4
MXWRU-035/220M5X6TRF22350.71707.75X65±0.35.35.360.50.81.4
MXWRU-035/270M6X6TRF27350.392509.56X66.3±0.36.66.67.30.50.82.2
MXWRU-035/330M6X6TRF33350.3925011.66X66.3±0.36.66.67.30.50.82.2
MXWRU-035/470M6X6TRF47350.3925016.56X66.3±0.36.66.67.30.50.82.2
MXWRU-035/560M6X8TRF56350.330019.66X86.37.7 ±0.36.66.67.30.50.82.2
MXWRU-035/680M6X8TRF68350.330023.86X86.37.7 ±0.36.66.67.30.50.82.2
MXWRU-035/101M6X8TRF100350.3300356X86.37.7 ±0.36.66.67.30.50.82.2
MXWRU-035/101M8X10TRF100350.17600358X10810.2 ±0.38.38.390.713.2
MXWRU-035/151M10X8TRF150350.1760052.510X8107.7 ±0.310.310.31111.44.6
MXWRU-035/151M8X10TRF150350.1760052.58X10810.2 ±0.38.38.390.713.2
MXWRU-035/221M8X10TRF220350.17600778X10810.2 ±0.38.38.390.713.2
MXWRU-035/331M10X10TRF330350.0985011610X101010.2 ±0.310.310.31111.44.6
MXWRU-035/471M10X14TRF470350.0795016510X141013.5 ±0.510.310.31111.44.6
MXWRU-035/471M12X14TRF470350.06110016512X1412.513.5 ±0.512.812.813.511.44.6
MXWRU-035/681M12X14TRF680350.06110023812X1412.513.5 ±0.512.812.813.511.44.6
MXWRU-035/102M16X16TRF1000350.03518000.516X161616.5 ±0.516.316.317.31.72.17
MXWRU-035/152M16X16TRF1500350.035180052516X161616.5 ±0.516.316.317.31.72.17
MXWRU-035/222M18X16TRF2200350.033206077018X161816.5 ±0.51919201.72.17
MXWRU-035/272M18X21TRF2700350.028226094518X211821.5 ±0.51919201.72.17
MXWRU-050/4R7M4X6TRF4.7502.96034X64±0.34.34.350.50.81
MXWRU-050/100M6X6TRF10500.8816556X66.3±0.36.66.67.30.50.82.2
MXWRU-050/220M6X6TRF22500.88165116X66.3±0.36.66.67.30.50.82.2
MXWRU-050/270M6X8TRF27500.6819513.56X86.37.7 ±0.36.66.67.30.50.82.2
MXWRU-050/330M6X8TRF33500.6819516.56X86.37.7 ±0.36.66.67.30.50.82.2
MXWRU-050/470M6X8TRF47500.6819523.56X86.37.7 ±0.36.66.67.30.50.82.2
MXWRU-050/560M8X10TRF56500.34350288X10810.2 ±0.38.38.390.713.2
MXWRU-050/680M8X10TRF68500.34350348X10810.2 ±0.38.38.390.713.2
MXWRU-050/101M10X8TRF100500.343505010X8107.7 ±0.310.310.31111.44.6
MXWRU-050/101M8X10TRF100500.34350508X10810.2 ±0.38.38.390.713.2
MXWRU-050/151M10X10TRF150500.186707510X101010.2 ±0.310.310.31111.44.6
MXWRU-050/221M10X10TRF220500.1867011010X101010.2 ±0.310.310.31111.44.6
MXWRU-050/331M12X14TRF330500.1290016512X1412.513.5 ±0.512.812.813.511.44.6
MXWRU-050/471M16X16TRF470500.073161023516X161616.5 ±0.516.316.317.31.72.17
MXWRU-050/681M16X16TRF680500.073161034016X161616.5 ±0.516.316.317.31.72.17
MXWRU-050/102M16X16TRF1000500.073161050016X161616.5 ±0.516.316.317.31.72.17
MXWRU-050/122M18X16TRF1200500.068190060018X161816.5 ±0.51919201.72.17
MXWRU-050/152M18X21TRF1500500.042218075018X211821.5 ±0.51919201.72.17
MXWRU-063/100M6X6TRF10631.5806.36X66.3±0.36.66.67.30.50.82.2
MXWRU-063/220M6X8TRF22631.212013.96X86.37.7 ±0.36.66.67.30.50.82.2
MXWRU-063/470M10X8TRF47630.720029.610X8107.7 ±0.310.310.31111.44.6
MXWRU-063/101M12X14TRF100630.168006312X1412.513.5 ±0.512.812.813.511.44.6
MXWRU-063/151M12X14TRF150630.1680094.512X1412.513.5 ±0.512.812.813.511.44.6
MXWRU-063/221M12X14TRF220630.1680013912X1412.513.5 ±0.512.812.813.511.44.6
MXWRU-063/331M16X16TRF330630.082141020816X161616.5 ±0.516.316.317.31.72.17
MXWRU-063/471M16X16TRF470630.082141029616X161616.5 ±0.516.316.317.31.72.17
MXWRU-063/681M18X16TRF680630.08169042918X161816.5 ±0.51919201.72.17
MXWRU-063/102M18X21TRF1000630.055196063018X211821.5 ±0.51919201.72.17
MXWRU-080/470M10X10TRF47800.6520037.610X101010.2 ±0.310.310.31111.44.6
MXWRU-080/101M12X14TRF100800.325008012X1412.513.5 ±0.512.812.813.511.44.6
MXWRU-080/151M12X14TRF150800.3250012012X1412.513.5 ±0.512.812.813.511.44.6
MXWRU-080/331M16X16TRF330800.1779326416X161616.5 ±0.516.316.317.31.72.17
MXWRU-080/471M18X16TRF470800.15391737618X161816.5 ±0.51919201.72.17
MXWRU-100/330M10X10TRF331000.652003310X101010.2 ±0.310.310.31111.44.6
MXWRU-100/470M12X14TRF471000.325004712X1412.513.5 ±0.512.812.813.511.44.6
MXWRU-100/680M12X14TRF681000.325006812X1412.513.5 ±0.512.812.813.511.44.6
MXWRU-100/101M16X16TRF1001000.1779310016X161616.5 ±0.516.316.317.31.72.17
MXWRU-100/151M16X16TRF1501000.1779315016X161616.5 ±0.516.316.317.31.72.17
MXWRU-100/221M18X16TRF2201000.15391722018X161816.5 ±0.51919201.72.17
MXWRU-100/331M18X21TRF3301000.083123033018X211821.5 ±0.51919201.72.17
