Tecate Group - MPXM Data Sheet

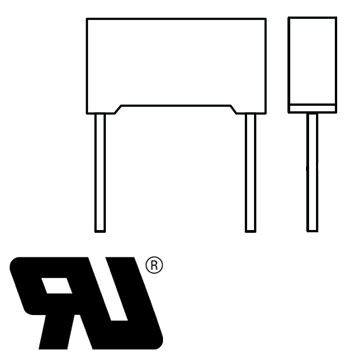

Type MPXM

Metallized polypropylene radial box, X2 type, reduced size

Features

Non-inductive construction.
Self-healing.
Flame-retardant plastic case and epoxy resin
(compliance with UL 94V-0).
High moisture-resistance.
Good solderability
(plated with 100% Matte Sn).

Applications

Line-by-pass.
Antenna coupling.
Across-the-line and spark killer circuits.
Also available for EMI filter and switching power supply applications.

Need a custom fit for your design? Click here to get started.

Part Number Example

MPXM	-	305	/	103	K	A	F
Type		Rated AC voltage		Capacitance code (pF)	Tolerance code	Thickness code	RoHS compliant
Capacitance Code: First two digits represent significant figures, third digit represents multiplier (number of zeros).

General Specifications

Item	Performance
Operating temperature	-40°C to +110°C
Capacitance range	0.01µF to 4.7µF
Capacitance tolerance	10%
Rated voltage range (rms)	275 VAC to 305 VAC
Withstanding voltage (between leads)	1,183 VDC for 1 minute for 275 VAC rated parts. 1,312 VDC for 1 minute for 305 VAC rated parts.
Minimum insulation resistance	After 2 minutes (minimum) at 23°C: IR ≥ 30000 Mohm measured @ 100 VDC ± 15 VDC (C-0.33μF). IR ≥ 10000 Mohm • μF measured @ 100 VDC ± 15 VDC (C > 0.33μF).

Safety detail specification

Country	Reference Standards	File Number
UL (US & Canada)	UL 60384-14:2014 CSA-E60384-14:09	E164458
VDE (Germany)	EN 60384-14:2013	40014111
ENEC (EU)	EN 60384-14:2013	40030152
CQC (China)	EN 60384-14:2013	10001048706

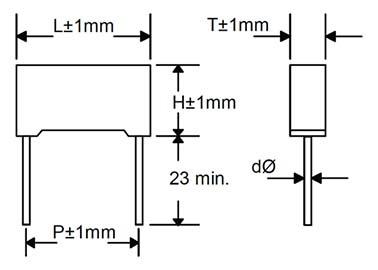

Dimensions

Standard Products

Part Number	Nom. Cap. (µF)	Voltage (VAC)	Dimensions (mm)
Part Number	Nom. Cap. (µF)	Voltage (VAC)	L	H	T	d	LS	DV/DT (V/µS)
MPXM-275/103K10AF	0.01	275	13	9	4	0.6	10	400
MPXM-275/103K10BF	0.01	275	13	11	5	0.6	10	400
MPXM-275/103K15AF	0.01	275	18	11	5	0.8	15	300
MPXM-275/123K10AF	0.012	275	13	9	4	0.6	10	400
MPXM-275/123K10BF	0.012	275	13	11	5	0.6	10	400
MPXM-275/123K15AF	0.012	275	18	11	5	0.8	15	300
MPXM-275/153K10AF	0.015	275	13	9	4	0.6	10	400
MPXM-275/153K10BF	0.015	275	13	11	5	0.6	10	400
MPXM-275/153K15AF	0.015	275	18	11	5	0.8	15	300
MPXM-275/183K10AF	0.018	275	13	9	4	0.6	10	400
MPXM-275/183K15AF	0.018	275	18	11	5	0.8	15	300
MPXM-275/223K10AF	0.022	275	13	9	4	0.6	10	400
MPXM-275/223K10BF	0.022	275	13	11	5	0.6	10	400
MPXM-275/223K15AF	0.022	275	18	11	5	0.8	15	300
MPXM-275/273K10AF	0.027	275	13	9	4	0.6	10	400
MPXM-275/273K10BF	0.027	275	13	11	5	0.6	10	400
MPXM-275/273K15AF	0.027	275	18	11	5	0.8	15	300
MPXM-275/333K10AF	0.033	275	13	9	4	0.6	10	400
MPXM-275/333K10BF	0.033	275	13	11	5	0.6	10	400
MPXM-275/333K15AF	0.033	275	18	11	5	0.8	15	300
MPXM-275/393K10AF	0.039	275	13	9	4	0.6	10	400
MPXM-275/393K10BF	0.039	275	13	12	6	0.6	10	400
MPXM-275/393K15AF	0.039	275	18	11	5	0.8	15	300
MPXM-275/473K10AF	0.047	275	13	9	4	0.6	10	400
MPXM-275/473K10BF	0.047	275	13	12	6	0.6	10	400
MPXM-275/473K15AF	0.047	275	18	11	5	0.8	15	300
MPXM-275/563K10AF	0.056	275	13	11	5	0.6	10	400
MPXM-275/563K10BF	0.056	275	13	13	7	0.6	10	400
MPXM-275/563K15AF	0.056	275	18	11	5	0.8	15	300
MPXM-275/683K10AF	0.068	275	13	11	5	0.6	10	400
MPXM-275/683K10BF	0.068	275	13	13	7	0.6	10	400
MPXM-275/683K15AF	0.068	275	18	11	5	0.8	15	300
MPXM-275/823K10AF	0.082	275	13	11	5	0.6	10	400
MPXM-275/823K10BF	0.082	275	13	14	8	0.6	10	400
MPXM-275/823K15AF	0.082	275	18	12	6	0.8	15	300
MPXM-275/104K10AF	0.1	275	13	11	5	0.6	10	400
MPXM-275/104K10BF	0.1	275	13	12	6	0.6	10	400
MPXM-275/104K10CF	0.1	275	13	16	8	0.6	10	400
MPXM-275/104K15AF	0.1	275	18	11	5	0.8	15	300
MPXM-275/104K15BF	0.1	275	18	12	6	0.8	15	300
MPXM-275/124K10AF	0.12	275	13	12	6	0.6	10	400
MPXM-275/124K15AF	0.12	275	18	12	6	0.8	15	300
MPXM-275/124K15BF	0.12	275	18	13.5	7.5	0.8	15	300
MPXM-275/154K10AF	0.15	275	13	13	7	0.6	10	400
MPXM-275/154K10BF	0.15	275	13	14	8	0.6	10	400
MPXM-275/154K12AF	0.15	275	15	11.5	6	0.6	12.5	300
MPXM-275/154K15AF	0.15	275	18	12	6	0.8	15	300
MPXM-275/154K15BF	0.15	275	18	13.5	7.5	0.8	15	300
MPXM-275/154K15CF	0.15	275	18	14.5	8.5	0.8	15	300
MPXM-275/184K10AF	0.18	275	13	14	8	0.6	10	400
MPXM-275/184K15AF	0.18	275	18	13.5	7.5	0.8	15	300
MPXM-275/224K10AF	0.22	275	13	14	8	0.6	10	400
MPXM-275/224K12AF	0.22	275	15	12.5	7	0.6	12.5	300
MPXM-275/224K15AF	0.22	275	18	13.5	7.5	0.8	15	300
MPXM-275/224K15BF	0.22	275	18	14.5	8.5	0.8	15	300
MPXM-275/224K15CF	0.22	275	18	15.5	9.5	0.8	15	300
MPXM-275/224K22AF	0.22	275	26.5	15	6	0.8	22.5	180
MPXM-275/224K22BF	0.22	275	26.5	16.5	7	0.8	22.5	180
MPXM-275/274K15AF	0.27	275	18	13	6.3	0.8	15	300
MPXM-275/274K15BF	0.27	275	18	15.5	9.5	0.8	15	300
MPXM-275/274K22AF	0.27	275	26.5	17	8.5	0.8	22.5	180
MPXM-275/334K12AF	0.33	275	15	14	8.5	0.8	12.5	300
MPXM-275/334K15AF	0.33	275	18	13.5	7.5	0.8	15	300
MPXM-275/334K15BF	0.33	275	18	15	8.5	0.8	15	300
MPXM-275/334K15CF	0.33	275	18	16.5	10	0.8	15	300
MPXM-275/334K15DF	0.33	275	18	19	11	0.8	15	300
MPXM-275/334K22AF	0.33	275	26.5	16.5	7	0.8	22.5	180
MPXM-275/334K22BF	0.33	275	26.5	17	8.5	0.8	22.5	180
MPXM-275/394K12AF	0.39	275	15	15	9	0.8	12.5	300
MPXM-275/394K15AF	0.39	275	18	13.5	7.5	0.8	15	300
MPXM-275/394K15BF	0.39	275	18	19	11	0.8	15	300
MPXM-275/394K22AF	0.39	275	26.5	17	8.5	0.8	22.5	180
MPXM-275/394K22BF	0.39	275	26.5	19	10	0.8	22.5	180
MPXM-275/474K12AF	0.47	275	15	16	10	0.8	12.5	300
MPXM-275/474K15AF	0.47	275	18	16.5	8.5	0.8	15	300
MPXM-275/474K15BF	0.47	275	18	15.5	9.5	0.8	15	300
MPXM-275/474K15CF	0.47	275	18	18.5	11	0.8	15	300
MPXM-275/474K22AF	0.47	275	26.5	17	8.5	0.8	22.5	180
MPXM-275/474K22BF	0.47	275	26.5	19	10	0.8	22.5	180
MPXM-275/474K27AF	0.47	275	31	18	9	0.8	27.5	120
MPXM-275/474K27BF	0.47	275	32	20	11	0.8	27.5	120
MPXM-275/564K12AF	0.56	275	15	17	11	0.8	12.5	300
MPXM-275/564K15AF	0.56	275	18	15.5	9.5	0.8	15	300
MPXM-275/564K15BF	0.56	275	18	19	11	0.8	15	300
MPXM-275/564K22AF	0.56	275	26.5	19	10	0.8	22.5	180
MPXM-275/564K27AF	0.56	275	32	18	9	0.8	27.5	120
MPXM-275/564K27BF	0.56	275	32	20	11	0.8	27.5	120
MPXM-275/684K15AF	0.68	275	18	18	10	0.8	15	300
MPXM-275/684K22AF	0.68	275	26.5	19	10	0.8	22.5	180
MPXM-275/684K27AF	0.68	275	32	18	9	0.8	27.5	120
MPXM-275/684K27BF	0.68	275	32	20	11	0.8	27.5	120
MPXM-275/824K15AF	0.82	275	18	19	11	0.8	15	300
MPXM-275/824K22AF	0.82	275	26.5	20	11	0.8	22.5	180
MPXM-275/824K27AF	0.82	275	32	20	11	0.8	27.5	120
MPXM-275/824K27BF	0.82	275	32	22	13	0.8	27.5	120
MPXM-275/105K15AF	1	275	18	21	12.5	0.8	15	300
MPXM-275/105K22AF	1	275	26.5	17	8.5	0.8	22.5	180
MPXM-275/105K22BF	1	275	26.5	23	14	0.8	22.5	180
MPXM-275/105K27AF	1	275	32	20	11	0.8	27.5	120
MPXM-275/105K27BF	1	275	32	22	13	0.8	27.5	120
MPXM-275/105K27CF	1	275	32	25	16	0.8	27.5	120
MPXM-275/125K22AF	1.2	275	26.5	19	10	0.8	22.5	180
MPXM-275/125K27AF	1.2	275	32	22	13	0.8	27.5	120
MPXM-275/155K22AF	1.5	275	26.5	20	11	0.8	22.5	180
MPXM-275/155K22BF	1.5	275	26.5	23	13	0.8	22.5	180
MPXM-275/155K27AF	1.5	275	32	22	13	0.8	27.5	120
MPXM-275/155K27BF	1.5	275	32	24.5	15	0.8	27.5	120
MPXM-275/185K22AF	1.8	275	26.5	23	13	0.8	22.5	180
MPXM-275/185K27AF	1.8	275	32	24.5	15	0.8	27.5	120
MPXM-275/205K22AF	2	275	26.5	23	13	0.8	22.5	180
MPXM-275/205K27AF	2	275	32	30	15	0.8	27.5	120
MPXM-275/225K22AF	2.2	275	26.5	23	14	0.8	22.5	180
MPXM-275/225K27AF	2.2	275	32	30	15	0.8	27.5	120
MPXM-275/225K31AF	2.2	275	37	26	15	0.8	31.5	70
MPXM-275/225K32AF	2.2	275	37	26	15	0.8	32.5	70
MPXM-275/225K36AF	2.2	275	41	28.5	16	1	36.5	70
MPXM-275/225K37AF	2.2	275	41	28.5	16	1	37.5	70
MPXM-275/335K27AF	3.3	275	32	28	18	0.8	27.5	120
MPXM-275/475K37AF	4.7	275	41.5	31.4	24	1	37.5	70
MPXM-305/103K10AF	0.01	305	13	9	4	0.6	10	400
MPXM-305/103K10BF	0.01	305	13	11	5	0.6	10	400
MPXM-305/103K15AF	0.01	305	18	11	5	0.8	15	300
MPXM-305/123K10AF	0.012	305	13	9	4	0.6	10	400
MPXM-305/123K10BF	0.012	305	13	11	5	0.6	10	400
MPXM-305/123K15AF	0.012	305	18	11	5	0.8	15	300
MPXM-305/153K10AF	0.015	305	13	9	4	0.6	10	400
MPXM-305/153K10BF	0.015	305	13	11	5	0.6	10	400
MPXM-305/153K15AF	0.015	305	18	11	5	0.8	15	300
MPXM-305/183K10AF	0.018	305	13	9	4	0.6	10	400
MPXM-305/183K15AF	0.018	305	18	11	5	0.8	15	300
MPXM-305/223K10AF	0.022	305	13	9	4	0.6	10	400
MPXM-305/223K10BF	0.022	305	13	11	5	0.6	10	400
MPXM-305/223K15AF	0.022	305	18	11	5	0.8	15	300
MPXM-305/273K10AF	0.027	305	13	9	4	0.6	10	400
MPXM-305/273K10BF	0.027	305	13	11	5	0.6	10	400
MPXM-305/273K15AF	0.027	305	18	11	5	0.8	15	300
MPXM-305/333K10AF	0.033	305	13	9	4	0.6	10	400
MPXM-305/333K10BF	0.033	305	13	11	5	0.6	10	400
MPXM-305/333K15AF	0.033	305	18	11	5	0.8	15	300
MPXM-305/393K10AF	0.039	305	13	9	4	0.6	10	400
MPXM-305/393K10BF	0.039	305	13	12	6	0.6	10	400
MPXM-305/393K15AF	0.039	305	18	11	5	0.8	15	300
MPXM-305/473K10AF	0.047	305	13	12	6	0.6	10	400
MPXM-305/473K15AF	0.047	305	18	11	5	0.8	15	300
MPXM-305/563K10AF	0.056	305	13	11	5	0.6	10	400
MPXM-305/563K10BF	0.056	305	13	13	7	0.6	10	400
MPXM-305/563K15AF	0.056	305	18	11	5	0.8	15	300
MPXM-305/683K10AF	0.068	305	13	11	5	0.6	10	400
MPXM-305/683K10BF	0.068	305	13	13	7	0.6	10	400
MPXM-305/683K15AF	0.068	305	18	11	5	0.8	15	300
MPXM-305/823K10AF	0.082	305	13	14	8	0.6	10	400
MPXM-305/823K15AF	0.082	305	18	12	6	0.8	15	300
MPXM-305/104K10AF	0.1	305	13	12	6	0.6	10	400
MPXM-305/104K10BF	0.1	305	13	16	8	0.6	10	400
MPXM-305/104K15AF	0.1	305	18	11	5	0.8	15	300
MPXM-305/104K15BF	0.1	305	18	12	6	0.8	15	300
MPXM-305/124K15AF	0.12	305	18	12	6	0.8	15	300
MPXM-305/124K15BF	0.12	305	18	13.5	7.5	0.8	15	300
MPXM-305/154K10AF	0.15	305	13	14	8	0.6	10	400
MPXM-305/154K15AF	0.15	305	18	12	6	0.8	15	300
MPXM-305/154K15BF	0.15	305	18	13.5	7.5	0.8	15	300
MPXM-305/154K15CF	0.15	305	18	14.5	8.5	0.8	15	300
MPXM-305/184K15AF	0.18	305	18	13.5	7.5	0.8	15	300
MPXM-305/224K15AF	0.22	305	18	13.5	7.5	0.8	15	300
MPXM-305/224K15BF	0.22	305	18	14.5	8.5	0.8	15	300
MPXM-305/224K15CF	0.22	305	18	15.5	9.5	0.8	15	300
MPXM-305/224K22AF	0.22	305	26.5	15	6	0.8	22.5	180
MPXM-305/224K22BF	0.22	305	26.5	16.5	7	0.8	22.5	180
MPXM-305/274K15AF	0.27	305	18	15.5	9.5	0.8	15	300
MPXM-305/274K22AF	0.27	305	26.5	17	8.5	0.8	22.5	180
MPXM-305/334K15AF	0.33	305	18	15	8.5	0.8	15	300
MPXM-305/334K15BF	0.33	305	18	16.5	10	0.8	15	300
MPXM-305/334K15CF	0.33	305	18	19	11	0.8	15	300
MPXM-305/334K22AF	0.33	305	26.5	16.5	7	0.8	22.5	180
MPXM-305/334K22BF	0.33	305	26.5	17	8.5	0.8	22.5	180
MPXM-305/394K15AF	0.39	305	18	19	11	0.8	15	300
MPXM-305/394K22AF	0.39	305	26.5	17	8.5	0.8	22.5	180
MPXM-305/394K22BF	0.39	305	26.5	19	10	0.8	22.5	180
MPXM-305/474K15AF	0.47	305	18	18.5	11	0.8	15	300
MPXM-305/474K22AF	0.47	305	26.5	17	8.5	0.8	22.5	180
MPXM-305/474K22BF	0.47	305	26.5	19	10	0.8	22.5	180
MPXM-305/474K27AF	0.47	305	31	18	9	0.8	27.5	120
MPXM-305/474K27BF	0.47	305	32	20	11	0.8	27.5	120
MPXM-305/564K15AF	0.56	305	18	19	11	0.8	15	300
MPXM-305/564K22AF	0.56	305	26.5	19	10	0.8	22.5	180
MPXM-305/564K27AF	0.56	305	32	18	9	0.8	27.5	120
MPXM-305/564K27BF	0.56	305	32	20	11	0.8	27.5	120
MPXM-305/684K22AF	0.68	305	26.5	19	10	0.8	22.5	180
MPXM-305/684K27AF	0.68	305	32	18	9	0.8	27.5	120
MPXM-305/684K27BF	0.68	305	32	20	11	0.8	27.5	120
MPXM-305/824K22AF	0.82	305	26.5	20	11	0.8	22.5	180
MPXM-305/824K27AF	0.82	305	32	20	11	0.8	27.5	120
MPXM-305/824K27BF	0.82	305	32	22	13	0.8	27.5	120
MPXM-305/105K22AF	1	305	26.5	23	14	0.8	22.5	180
MPXM-305/105K27AF	1	305	32	20	11	0.8	27.5	120
MPXM-305/105K27BF	1	305	32	22	13	0.8	27.5	120
MPXM-305/105K27CF	1	305	32	25	16	0.8	27.5	120
MPXM-305/125K22AF	1.2	305	26.5	19	10	0.8	22.5	180
MPXM-305/125K27AF	1.2	305	32	22	13	0.8	27.5	120
MPXM-305/155K22AF	1.5	305	26.5	23	13	0.8	22.5	180
MPXM-305/155K27AF	1.5	305	32	22	13	0.8	27.5	120
MPXM-305/155K27BF	1.5	305	32	24.5	15	0.8	27.5	120
MPXM-305/185K27AF	1.8	305	32	24.5	15	0.8	27.5	120
MPXM-305/205K27AF	2	305	32	30	15	0.8	27.5	120
MPXM-305/225K27AF	2.2	305	32	30	15	0.8	27.5	120
MPXM-305/225K31AF	2.2	305	37	26	15	0.8	31.5	70
MPXM-305/225K32AF	2.2	305	37	26	15	0.8	32.5	70
MPXM-305/225K36AF	2.2	305	41	28.5	16	1	36.5	70
MPXM-305/225K37AF	2.2	305	41	28.5	16	1	37.5	70
MPXM-305/335K27AF	3.3	305	32	28	18	0.8	27.5	120
MPXM-305/475K37AF	4.7	305	41.5	31.4	24	1	37.5	70

7520 Mission Valley Road • San Diego, CA 92108-4400 USA • Tel: 619.398.9700 • www.tecategroup.com
Tecate reserves the right, without notice, to change design or construction of any products and to discontinue or limit distribution of any products. Tecate also reserves the right to change or update, without notice, any technical information contained in this bulletin.	Spec. Date: 2020-03-19 16:25:02 Page {PAGENO}/{nbpg}
