Type CMCS
Ceramic multi-layer chip RF/microwave

Features

  • Surface mount
  • Suitable for reflow soldering
  • Excellent frequency characteristics
  • RoHS compliant
  • Designed for RF communication applications

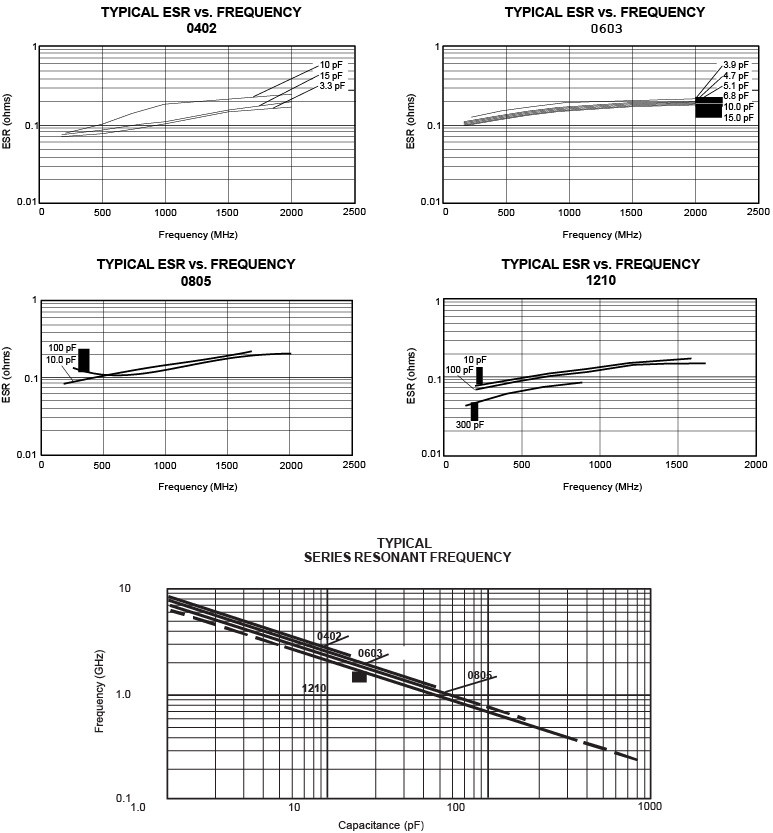

  • Ultra low ESR

Part Number Example

CMCS-100/100FN0402TF
Type Rated
voltage
 Capacitance
code (pF)
Tolerance
code
Dielectric
material
Case
size
Package
code
RoHS
compliant
Capacitance Code: First two digits represent significant figures, third digit represents multiplier (number of zeros).
Rated Voltage: 050 = 50V; 100 = 100V; 200 = 200V
Dielectric Material: N = NP0
Package Code: T = 7” Tape & Reel, T13 = 13” Tape & Reel, W = Waffle.

General Specifications

ItemPerformance
Operating temperature-55°C to +125°C
Capacitance range0.2pF to 1,000pF
Capacitance toleranceNP0: (0.2pF - 9.1pF) ±0.1 PF / ±0.25 PF
NP0: (0.6pF - 9.1pF) ±0.5 PF
NP0: (10pF - 1,000pF) 1% / 10% / 2% / 5%
Rated voltage range50 VDC to 200 VDC
Temperature coefficient0ppm ± 30 ppm/°C (-55°C ~ +125°C) NPO.
Withstanding voltage (between leads)2.5 times rated voltage, 50mA maximum for 1 second
Minimum insulation resistance1,000,000 MΩ minimum @ 25°C, rated voltage.
100,000 MΩ minimum @ 125°C, rated voltage

Dimensions


Size mm (in)

size length width thickness endband
04021.02 (0.040)0.51 (0.020)0.56 (0.022)0.25 (0.010)
06031.60 (0.063)0.81 (0.032)0.94 (0.037)0.36 (0.014)
08052.01 (0.079)1.25 (0.049)1.45 (0.057)0.51 (0.020)
12103.20 (0.126)2.49 (0.098)2.79 (0.110)1.50 (0.059)

MINIMUM/MAXIMUM CAPACITANCE VS. SIZE

TC VDC Size
0402060308051210
NP05011pF to 30pF110pF to 120pF
NP01000.2pF to 10pF20pF to 100pF140pF to 160pF470pF to 1,000pF
NP0200 1pF to 18pF1pF to 130pF1pF to 430pF
